WHAT’S NEW AT LINTERK

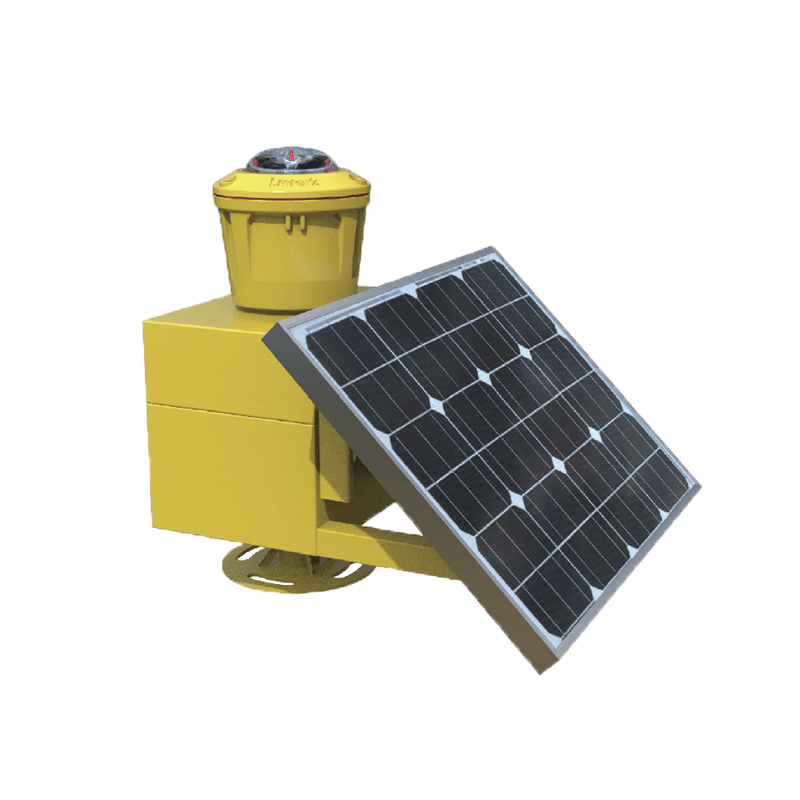

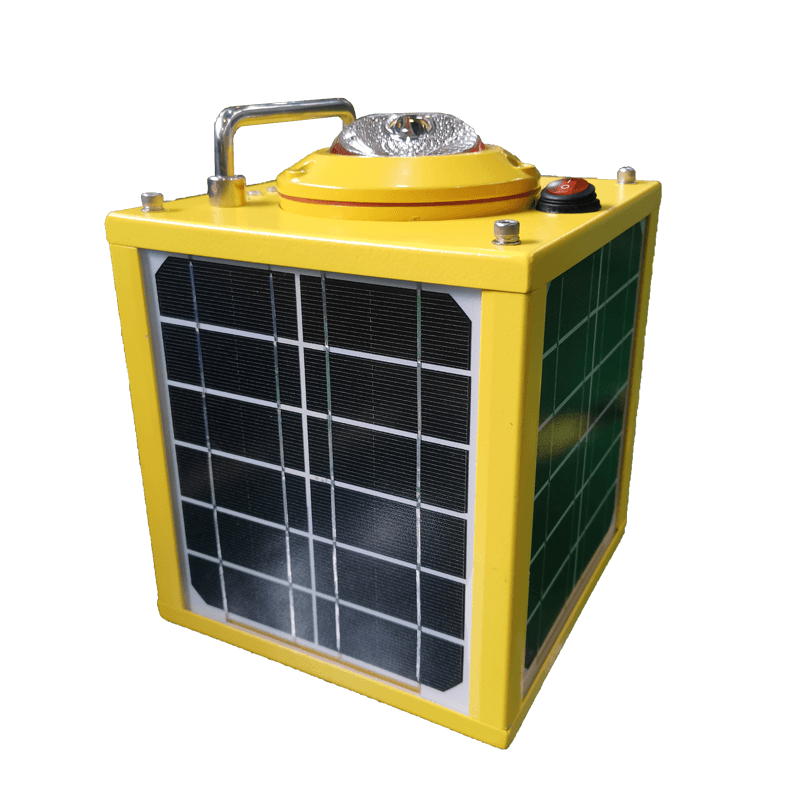

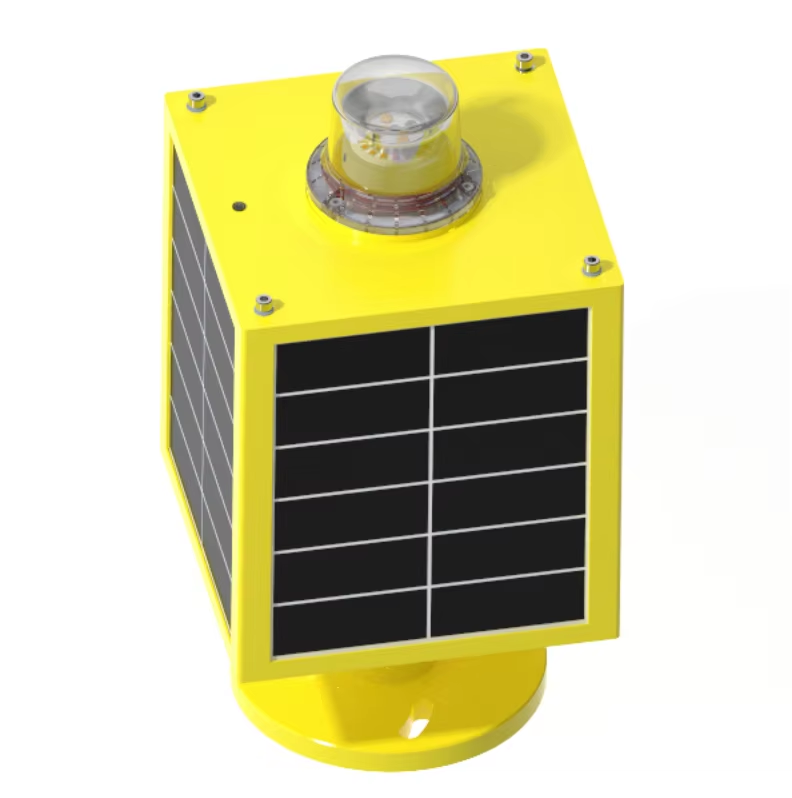

Solar Aviation Obstruction Light

Solar Aviation Obstruction Light
● Accurate photocells build-in
● Portable and easy to install
● Excellent quality and 5 years warranty

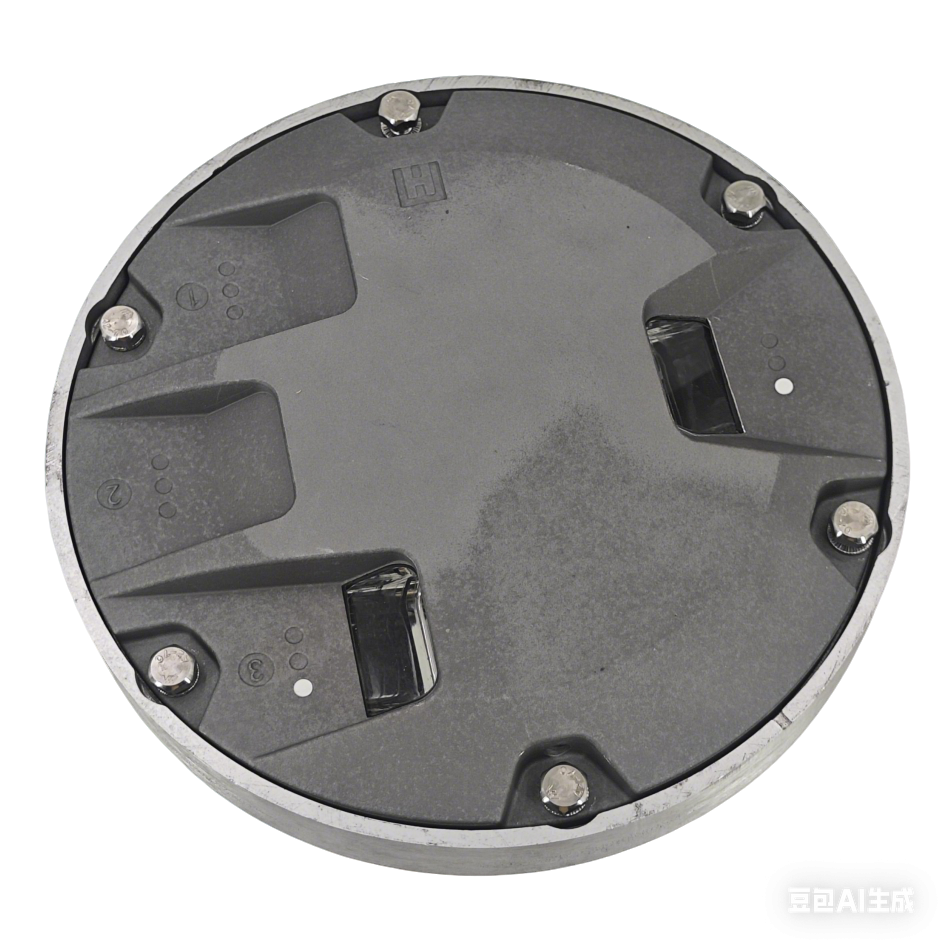

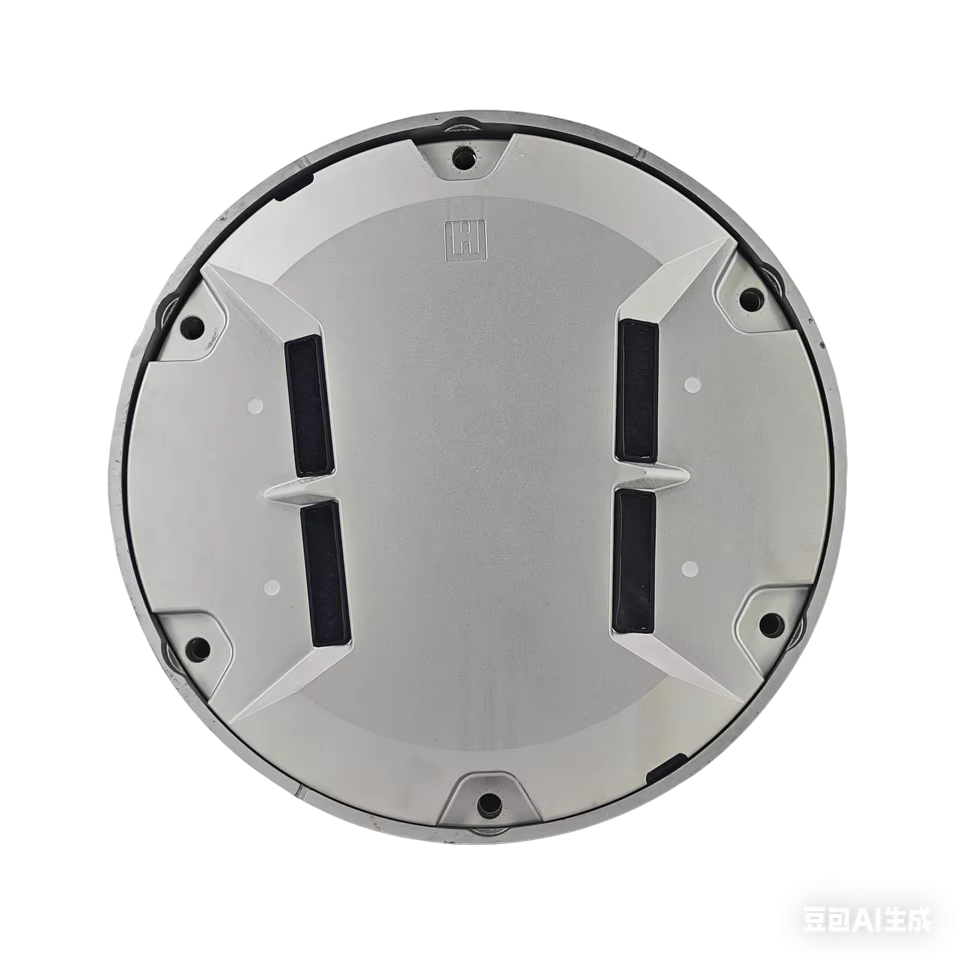

Airport Runway Light

Halogen / LED available
● Brightness: 10000CD
● Aluminum Alloy High Precision Die-cast base

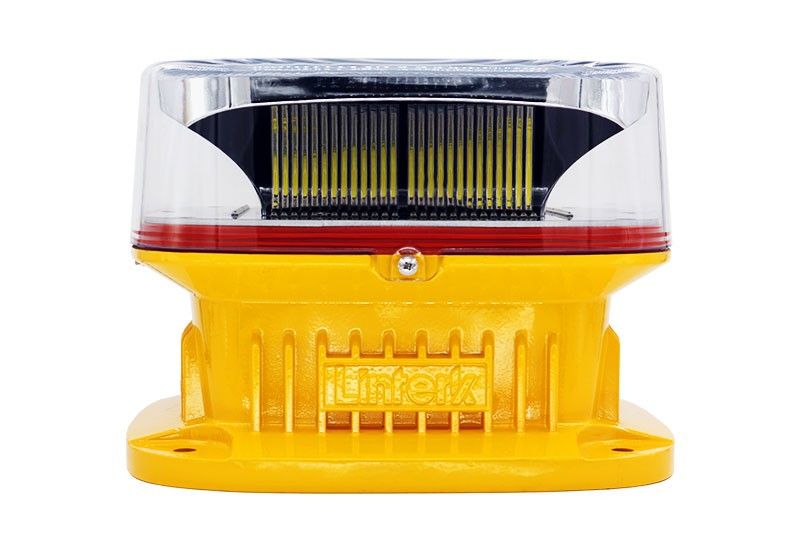

Tower Aircraft Warning Light

L-864 Medium Intensity Type B
● Professional optical design
● Tiny and compact designs
● IP67 protection grade more than 10 years

Airport Ground Lights Obstruction Lights Industrial Lights Inteligent Facilities

Hunan Lingte Technology Co., Ltd.

We manufacture and supply aviation obstruction lighting systems and monitoring solutions. Our unique customer support and service to the Tall building, Power Towers, Telecommunications, Broadcast, Utility and Renewable Wind Energy industries all of the world. Products from us are qualified with ICAO, ISO, CAAC and CE criterion.

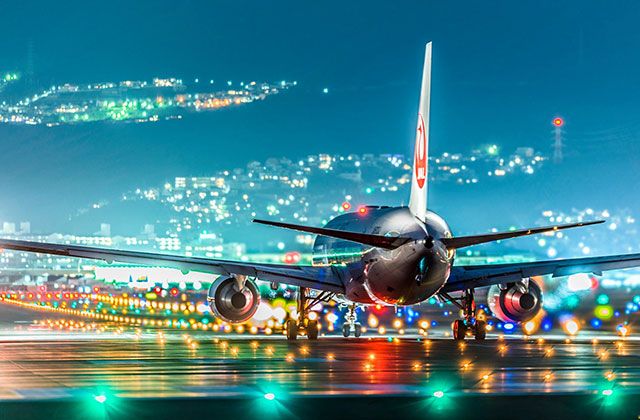

Airport Lighting
Airport Lighting System
● Runway Edge Lights - white lights located just beyond the edge of the runways surface
● Runway End Identifier Lights (REIL) - a pair of synchronized flashing lights located on each side of the runway threshold

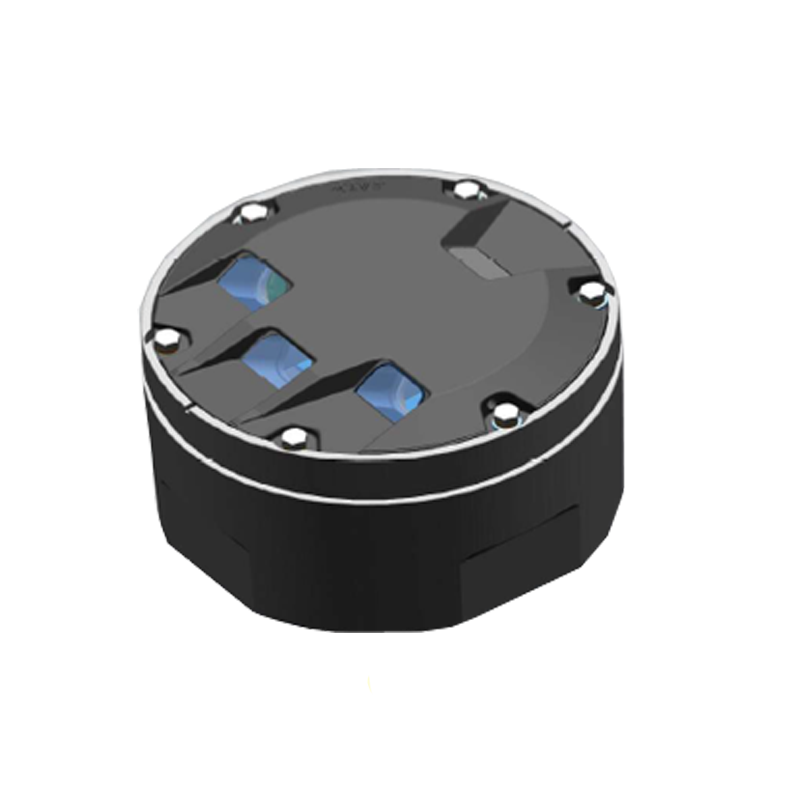

● Runway Centerline Lights - are embedded lights, 50 feet apart, in the centerline of runways
● Visual Approach Slope Indicator Lights (VASI) - to assist pilots in maintaining a typical glide path to the touchdown area of the runway

High-rise Buildings Lighting
Installation Notes
● The outline of the building should be identified including the highest point and the outermost edge.
● Aviation Obstruction Lights layering: The distance between low intensity obstruction lights and medium intensity obstruction lights type B shall be not more than 52 meters, between medium intensity obstruction lights type A and high intensity obstacle lights shall be not more than 105 meters.
● Horizontal position: the distance between aviation obstruction lights shall be 45 meters
● All of aviation obstruction lights flash shall be synchronized on a building or buildings.

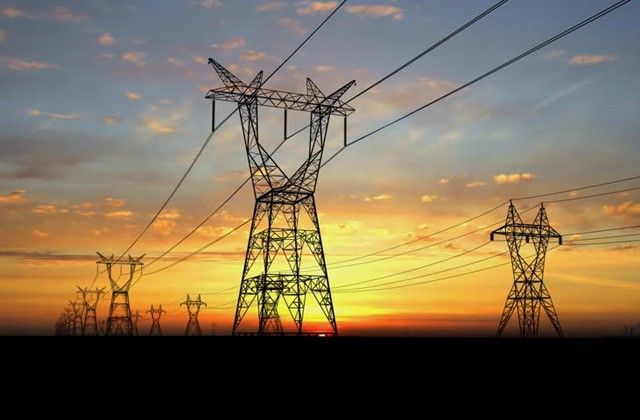

Marking Solutions for Power Transmission Lines
Installation Notes

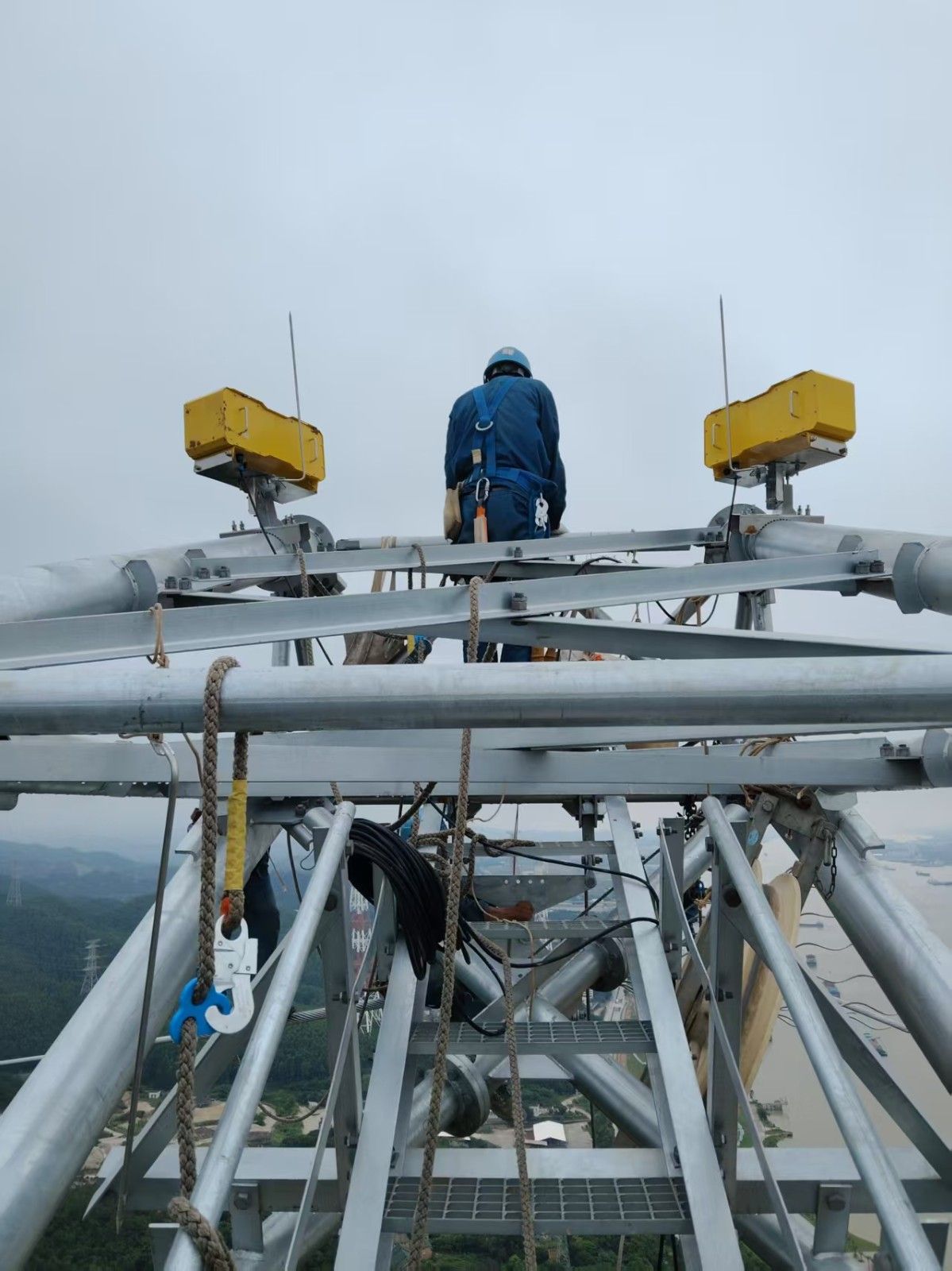

● Power Transmission Towers are usually identified by Aviation obstruction light High intensity Type B.
● Aviation obstruction light shall be installed in three layers, at the top of the tower, at the lowest point of the cable over hang line and midpoint of them.
Flash rate of aviation obstruction lights on the same tower shall be synchronized or lights flash orderly.

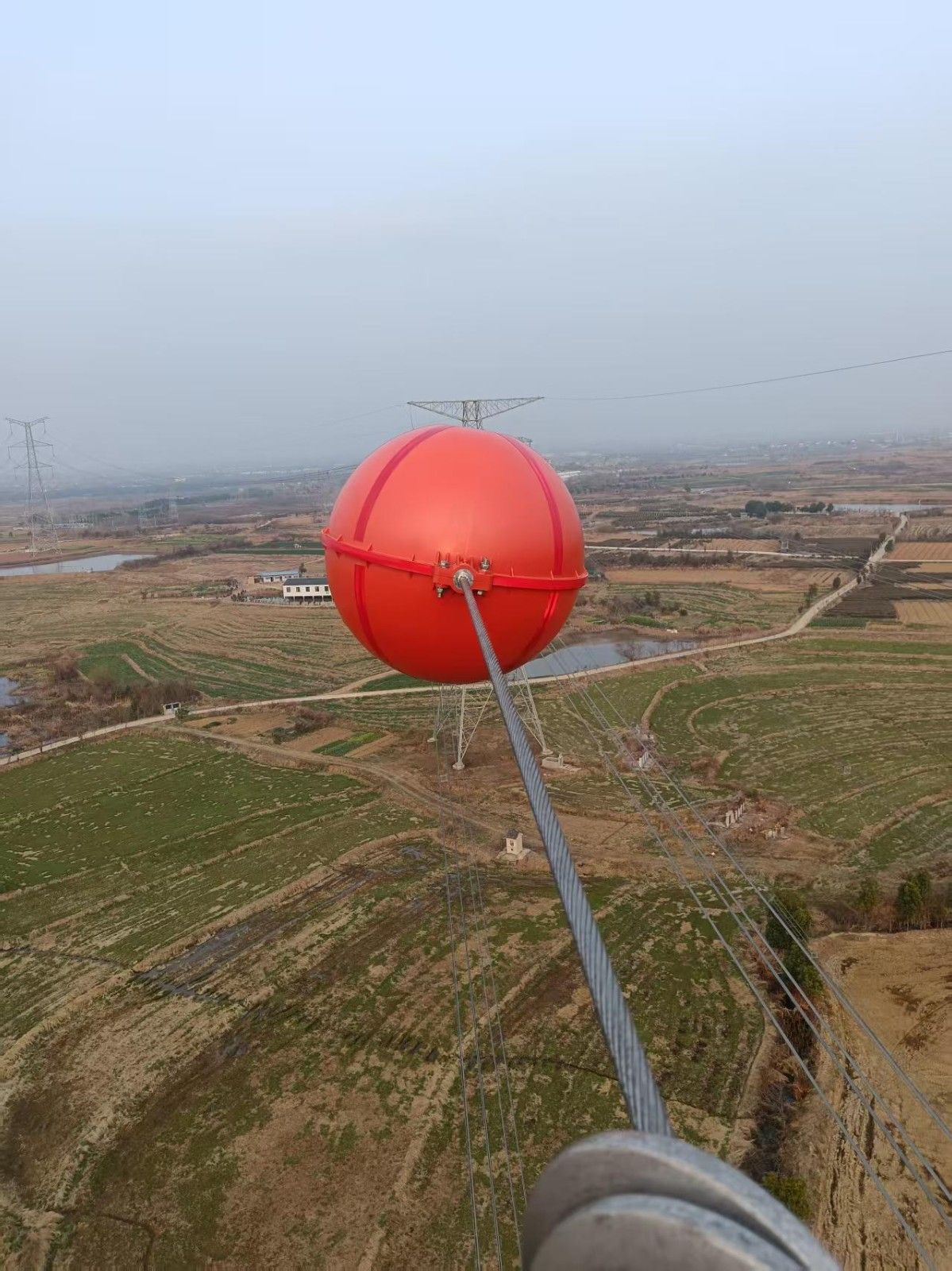

● Aviation Warning Sphere shall be installed at an equal distance of not more than 30 meters on overhead cables.
● Solar-powered systems are often used as off-line power sources for aviation obstruction lights.

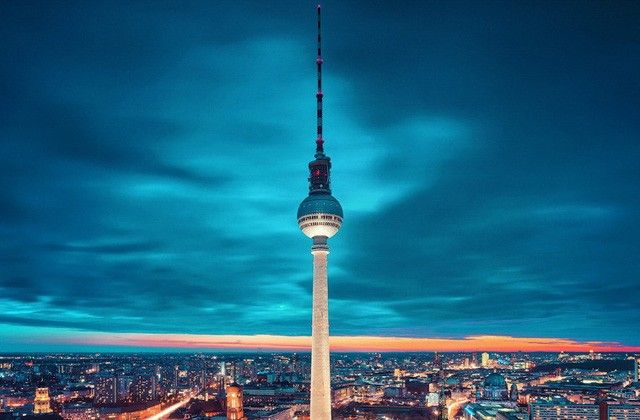

Telecom Tower Lighting
Installation Notes
● The outline of the telecom tower should be identified including the highest point and the outermost edge.
● Obstruction Lights layering: The distance between low intensity obstruction lights and medium intensity obstruction lights type B shall be not more than 52 meters, between medium intensity obstruction lights type A and high intensity obstacle lights shall be not more than 105 meters.
● Horizontal position: the distance between aviation obstruction lights shall be 45 meters
● All of obstruction lights flash shall be synchronized on a telecom tower.

Bridge Mark Lighting
Installation Notes
● The outline of the bridge tower should be identified including the highest point and the outermost edge.
● Obstruction Lights layering: The distance between low intensity obstruction lights and medium intensity obstruction lights type B shall be not more than 52 meters, between medium intensity obstruction lights type A and high intensity obstacle lights shall be not more than 105 meters.
● Horizontal position: the distance between aviation obstruction lights shall be 45 meters
● All of obstruction lights flash shall be synchronized on a bridge tower.

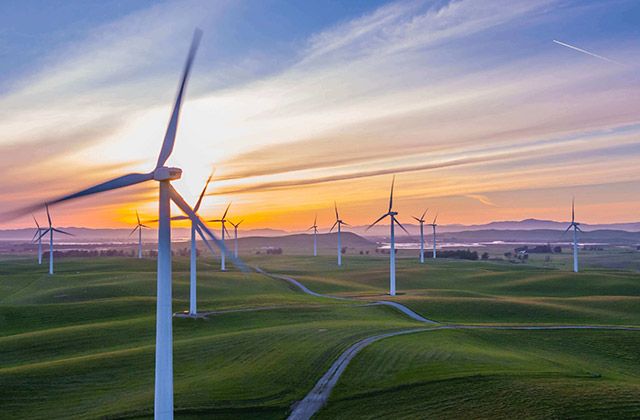

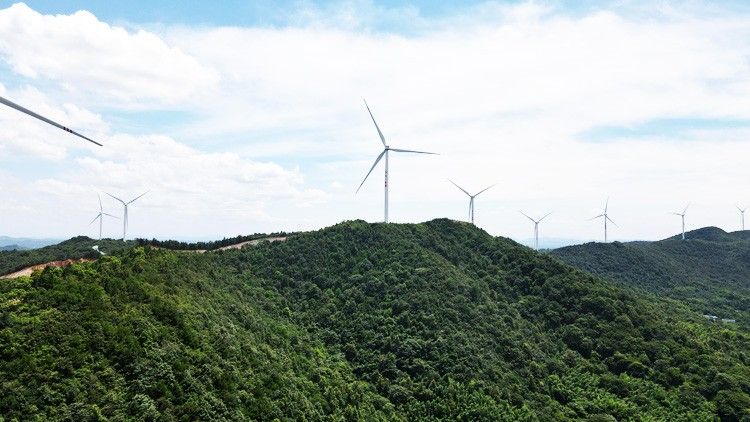

Wind Turbines Lighting
Installation Notes
● The are two aviation obstruction lights shall be installed on the top of the engine room. And the spacing between two lights shall longer than the width of the fan blade.
● The flash rate of lights on the same wind turbine shall be synchronized.
● Total height of the wind turbine <45m Set low intensity lights type B or medium intensity lights type B at the top of the wind turbine.
45m≤total height<105m Set medium intensity lights type B at the top of the engine room.
105m≤total heigh<150m Set medium intensity lights type A at the top of the engine room.
● Total height≥150m Set high intensity lights type A at the top of the engine room, set low intensity lights at height...
