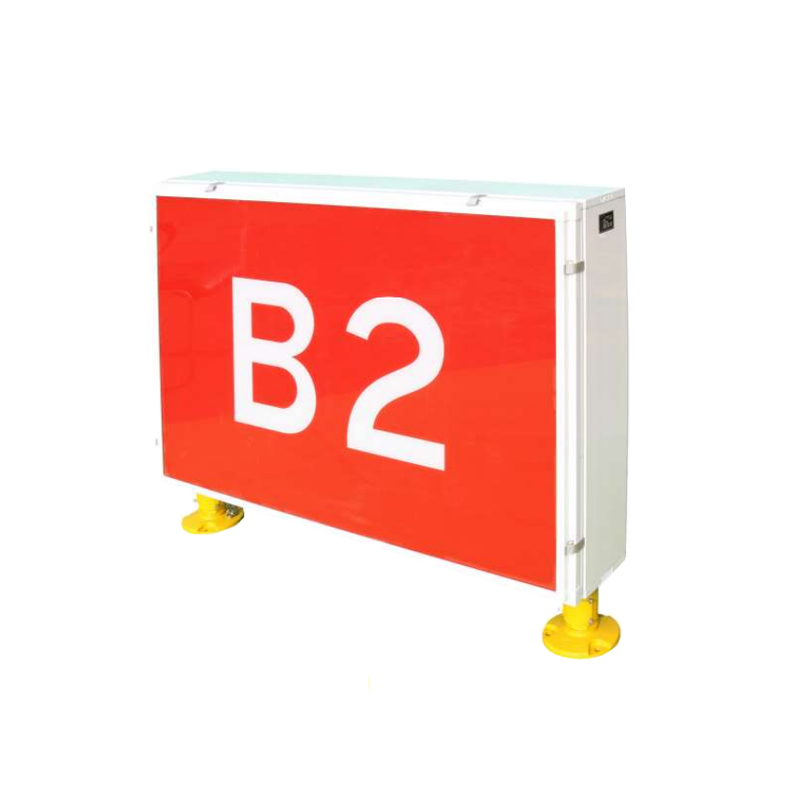

LED Airfield Runway Taxiway Guidance Signs
| Items | LED source | Fluorescent lamp |
Power | 18W | 84W |
brightness | 380cd/m² | 404cd/m² |
Max brightness ratio | 1.52:1 | 1.83:1 |
Evenness | 1.19:1 | 1.33:1 |
PRODUCT DESCRIPTION
Features
The color of the card surface and background is pure, the graphics are clear and bright, and the indication and guidance effect is good;
The panel is made of new polycarbonate material, which has good impact resistance and ultraviolet resistance;
The sign has a strong overall wind resistance and can withstand 160km / h or 320km / h wind force;
The tag is equipped with a tether chain, which further improves the safety of product us
Performance parameters: Power: 18W / m²
IP grade: IP54; Work Temperature: -55- + 55 ℃
Executive Standard
CAAC ( MH/T6011-2015)
ICAO(Aerodromes-Annex-14-2018)
FAA(AC150/5345-44K)
GB/T7256-2015
Structure
1 | Body corner joint | 7 | Foldable parts |
2 | Frame corner joint | 8 | Pillar |
3 | Main body A | 9 | LED light bar |
4 | Frame | 10 | Gusset |
5 | Acrylic board | 11 | Main body B |
6 | Flange |
1 | Body corner joint | 6 | Flange |
2 | Frame corner joint | 7 | Foldable parts |
3 | Main body A | 8 | Pillar |
4 | Frame | 9 | LED light bar |
5 | Acrylic board | 10 | Main body B |
Application
This product suitable for civil and military airports, installed on the runway, taxiway, apron side, providing direction, destination, location, remaining runway information, runway entrance, runway departure and no entry.
