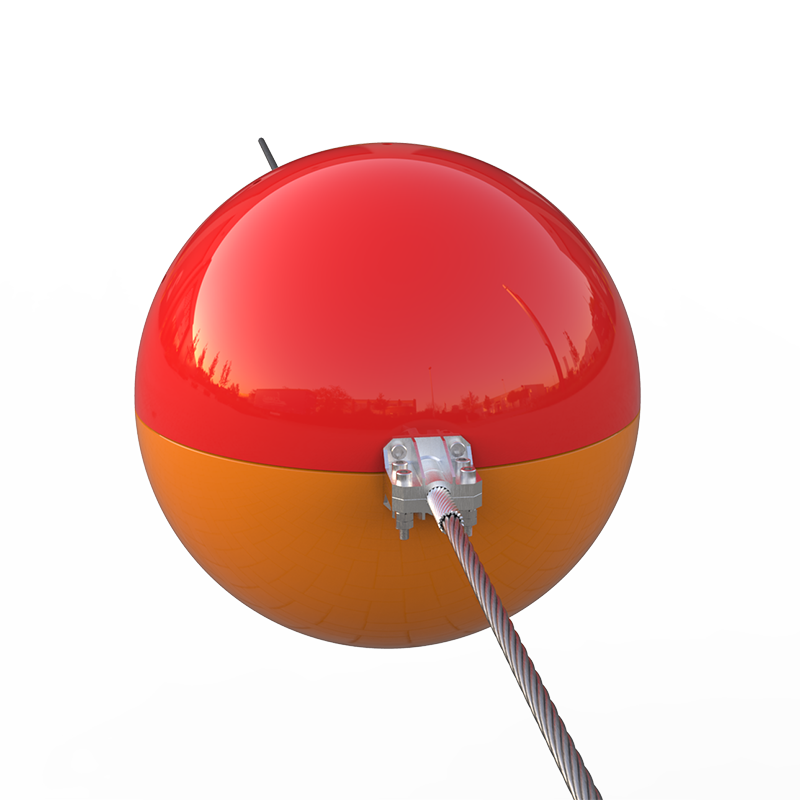

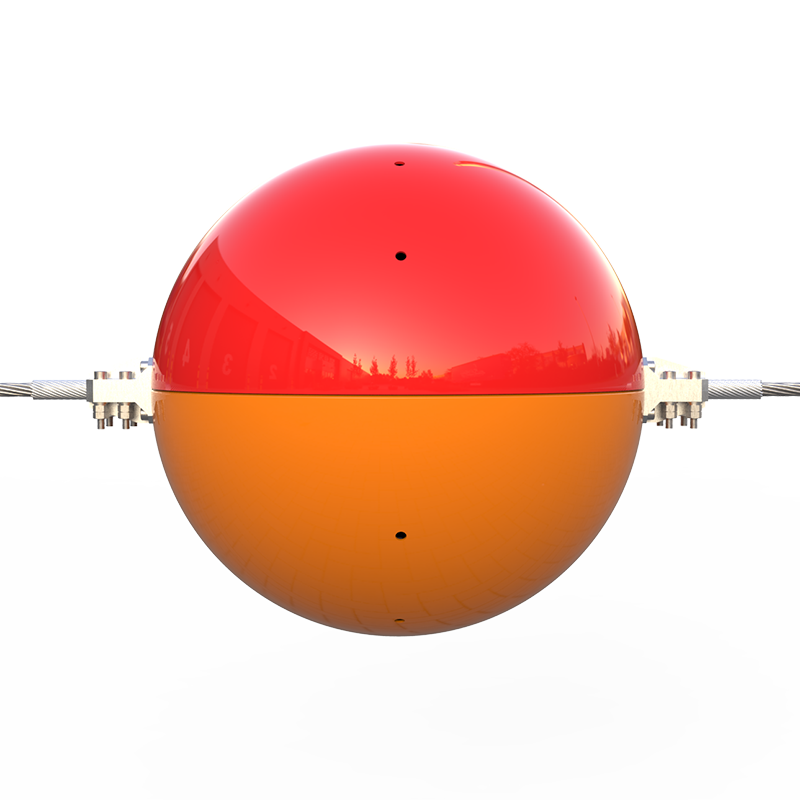

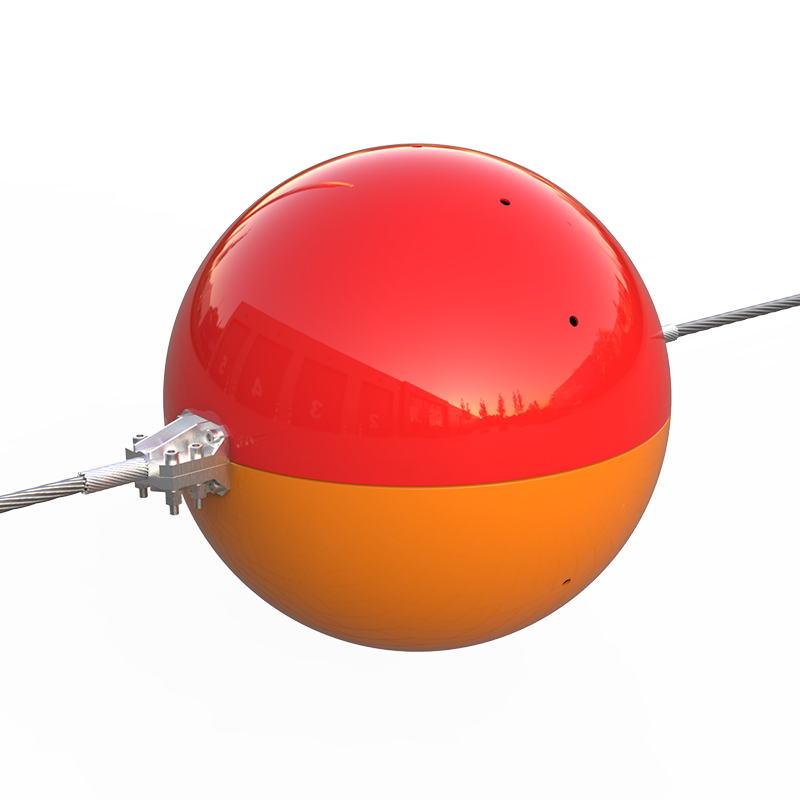

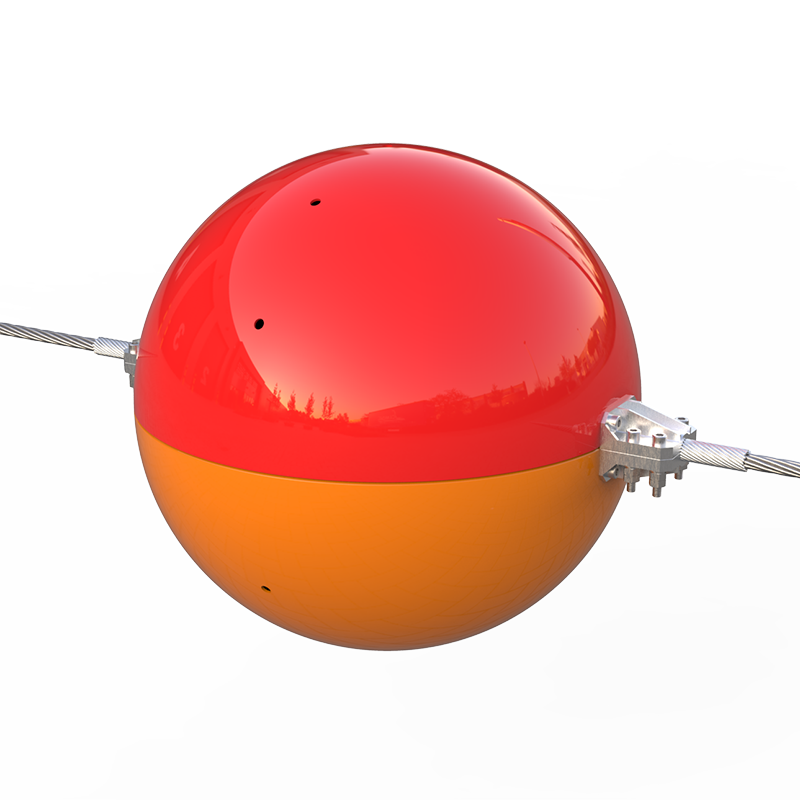

Aviation warning aerial marker sphere
| Product name | Aviation Warning Sphere |
| Model | LT-03-OR06 |
| Dimesion | 400mm/600mm diameter (customizable) |
| Color | Orange-red |
| Material | Fiberglass |
| Lifespan | >20 years |
| Ambient temperature | -55℃~+75℃ |
| Ambient humidity | 0%-95% (no condensing) |
| Wind level | 240Km/h |
PRODUCT DESCRIPTION
Features
nUltra-light high-strength glass fiber body
nSuper corrosion-resistant stainless steel nut
nUltra-light and corrosion-resistant aluminum alloy clamp
nSuitable for all kinds diameters of cables
nLeakage channel design to prevent water accumulation in the ball
nDifferent diameters and colors can be customized
Specification
| Type | Aviation warning sphere |
| Model | LT-03-OR06 |
| Dimension | 400mm/600mm diameter (customizable) |

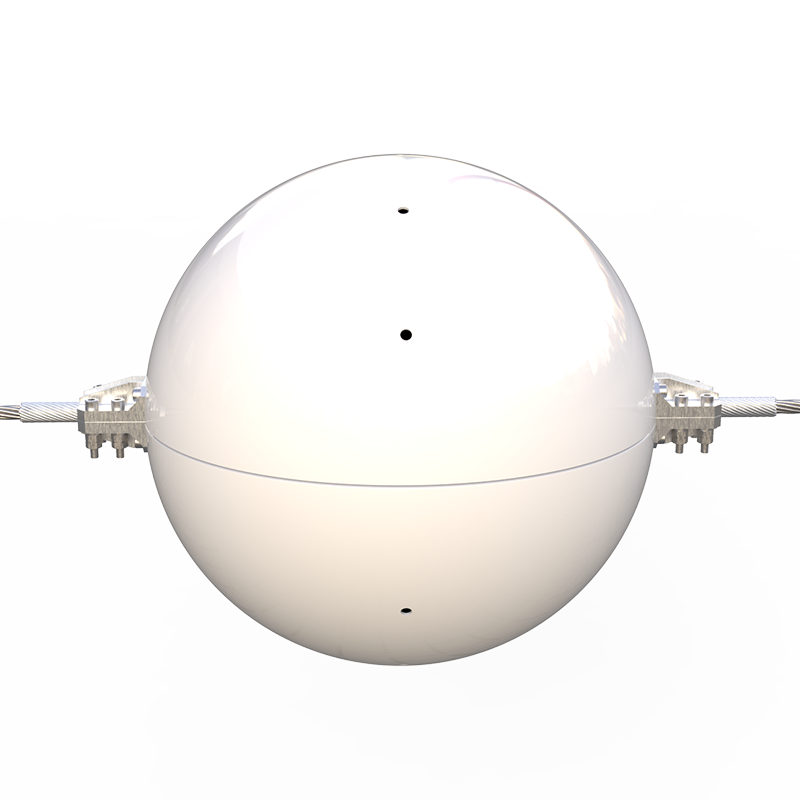

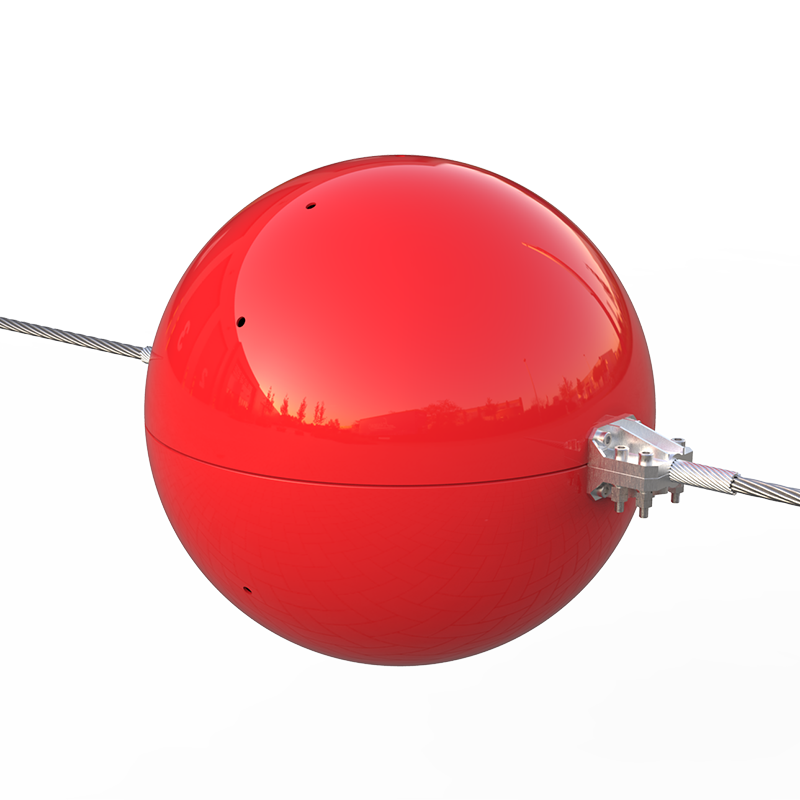

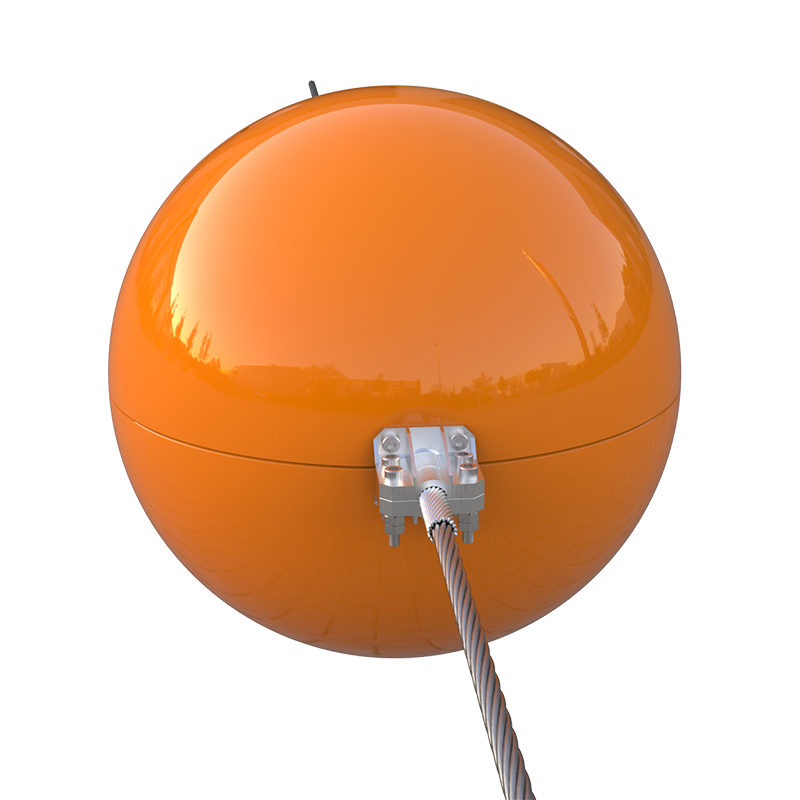

| Color | Orange-red, red, white, orange, combining colors (customizable) |
| Wire diameter | 6.5～55mm (customizable) |
| Visible distance | 3000 meters |
| Life time | > 20 years |
| Voltage level | 10-1100KV |
| Materials | Body: Glass Fiber(customizable) |
| Wire clip: Aluminum Alloy(customizable) | |
| Ambient temperature | -55˚C ~ +75˚C |
| Ambient humidity | 0% -95% (no condensing) |
| Wind level | 240Km/h |
| Ref. Weight | 6.5Kgs |
Executive Standard
nCAAC《MH5001-2013》
nICAO 《Aerodromes Annex 14-2018》
nFAA 《AC 70-7460/1L》

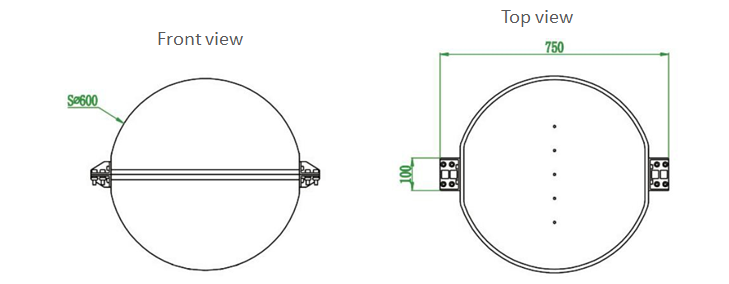

Installation size
Application
Aviation warning sphere is used for warning aircraft pilots in daytime and nighttime. It can be used in overhead cable, guyed wire, especially in extra high voltage power transmission line, cross river power transmission line, draft line, overhead line, cross road, bridge power transmission line and so on.
