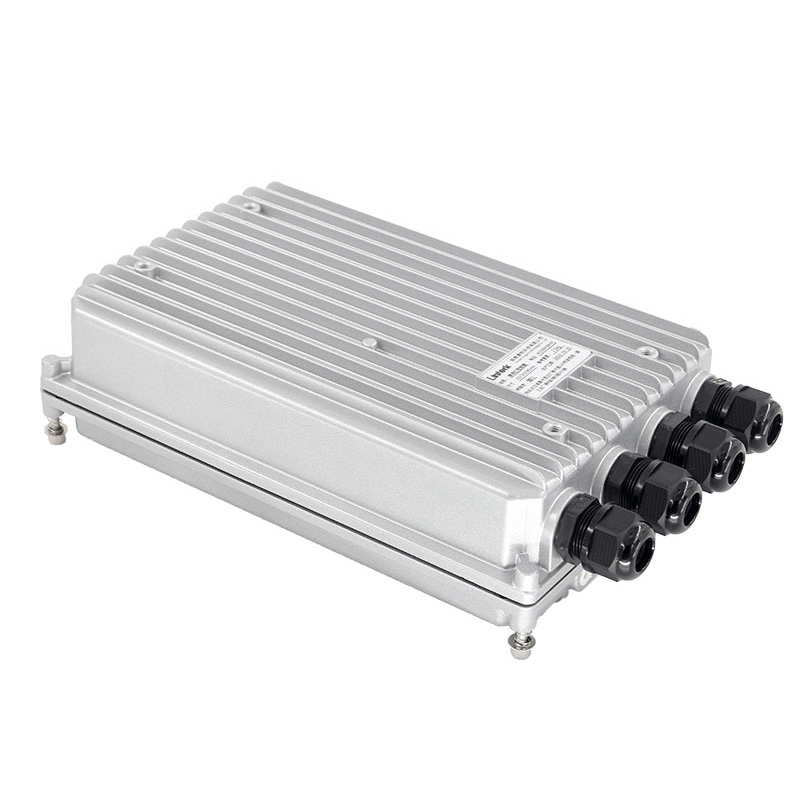

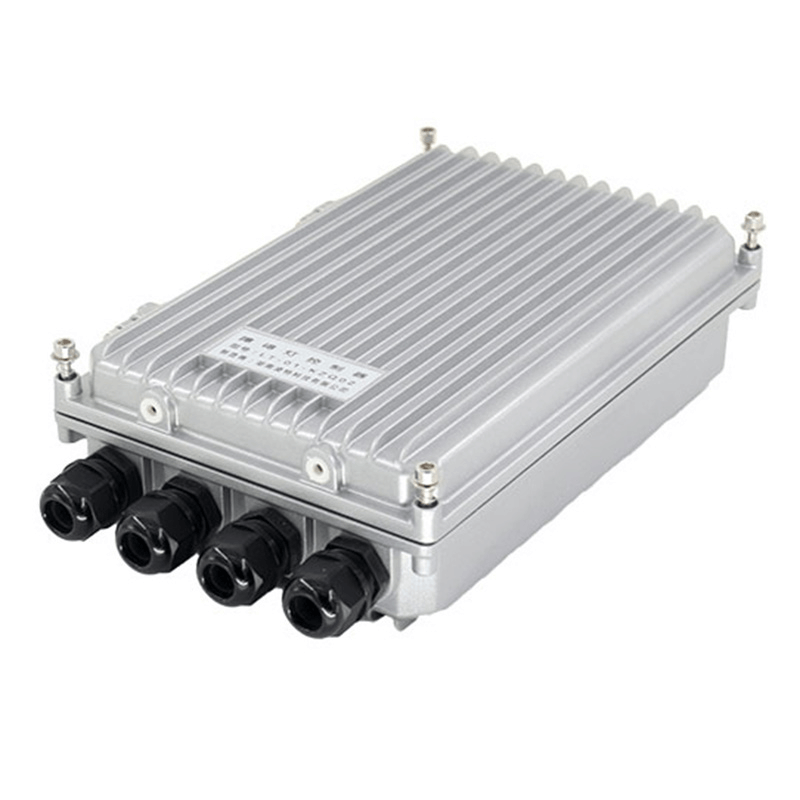

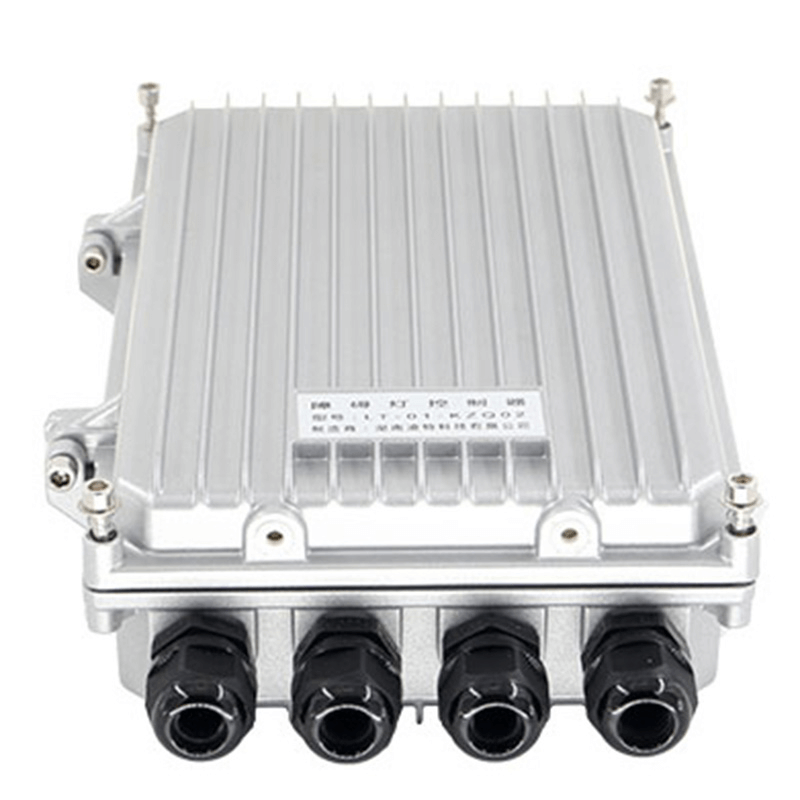

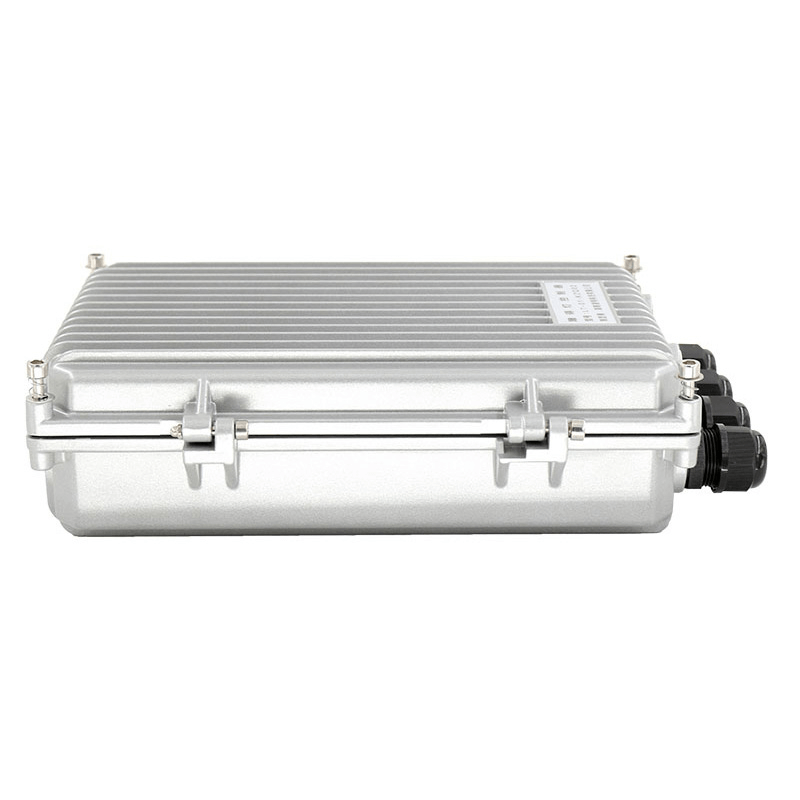

Controller Box for Obstruction Lights

Model number

LT-01-KZQ02

Work voltage

AC85-265V

Max Load Power

<1000W

Frequency

50Hz~60Hz

Single load power

4W~100W

Communication ModeCarrier , Wireless (customizable)
Photosensitivity0~500cd/ ㎡(adjustable)
Light source

LED


Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-KZQ02Photosensitivity0~500cd/ ㎡(adjustable)
Work voltageAC85-265VMaterialsHigh Strength Stainless Steel
Max Load Power<1000WLight sourceLED
Frequency50Hz~60HzAmbient temperature-40˚C ~ +55˚C
Single load power4W~100WAmbient humidity0% ~ 95% (no condensing)
Communication ModeCarrier , Wireless (customizable)IP rateIP65
Storage temperature-40˚C ~ +85˚CWeight5Kg



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43H)

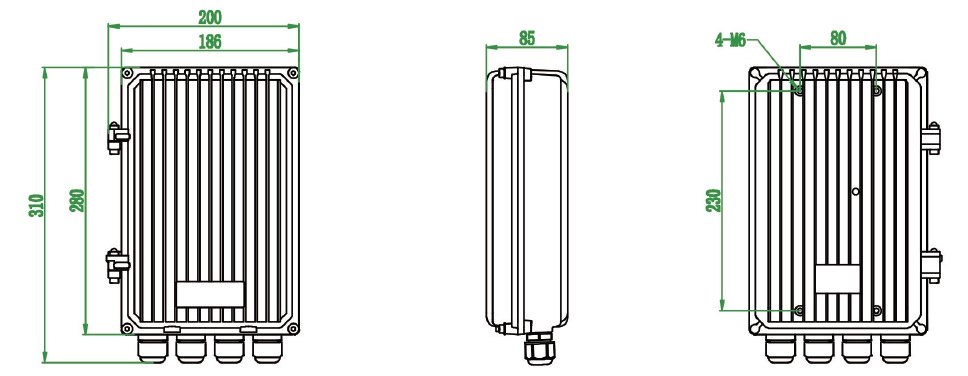

Installation size:


Controller Box for Obstruction Lights


Application Fields:

Medium Intensity Type A Obstacle Light

Controller Box for Obstruction Lights
