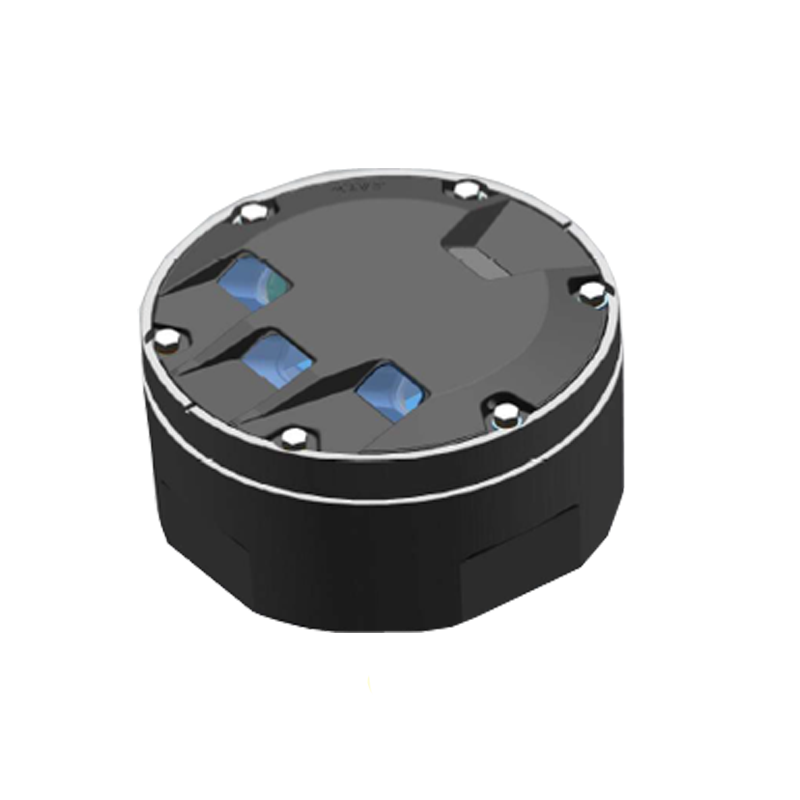

Embedded runway light

• Light intensity and light color meet the standard requirements.

• Precise optical control, high light utilization, high brightness and outstanding optical performance

• The overall shape of the lamp is beautiful, the heat dissipation performance is good, and the design is reasonable.

• The lamps are cast by aluminum alloy with high strength.

• Anti-corrosion treatment on the surface of lamps and lanterns, durable.

• Power: entrance light 210W, approach light 315W, runway side light 210W, entrance end light 315W, end light 105W; LED light source lamp power: entrance light 30W, approach light 40W, runway side light 30W,

     entrance end light 40W, end light 15W;

• Protection grade: IP67;

• Ambient temperature: -55-+55℃

Executive Standard

• ISO

• ICAO(Aerodromes-Annex-14-2018)

• ICAO - Aerodrome Design Manual

• FAA  AC150/5345-46E

• GB/T7256-2015

• AC-137-CA-2015-03-R1

• AC-137-CA-2015-04-R1

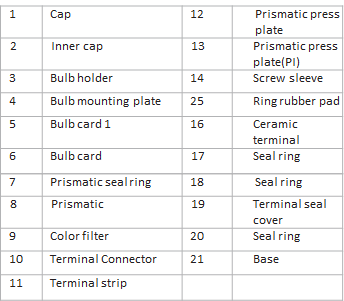

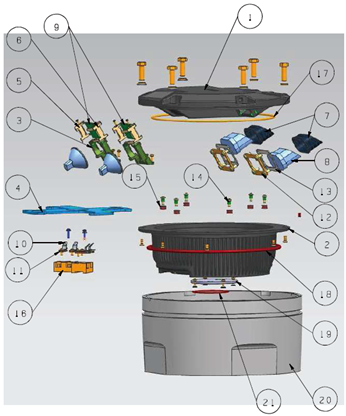

Structure

Packed weight

Packing size: 330*330*200 (with 1 set of lamps)

Net weight: 6.3kg

Gross weight: 6.6kg

Application

This product is suitable for embedded runway entrance light, runway entrance wing row light, runway side light, runway end light and approach light in civil and military airports.
