Aeronautical Obstruction Light Cranes Red LED obstruction light
| Model number | LT-01-LB (L) |
| Work voltage | AC85-265V |
| Power consumption | ＜3W |
| Surge resistance | IEC61000-4-5 3kA, IEC61000-4-5 6kV |
| Light source | LED |
| Light color | Red |
| Vertical degree | ≥ 10 ° |
| Horizontal degree | 360° |
| Work Mode | Constant light |
Share:
PRODUCT DESCRIPTION
Specification:
| Model number | LT-01-LB (L) | LED life | ≥100,000 hours |
| Work voltage | AC85-265V | Photosensitivity | 0~500cd/ ㎡ (adjustable) |
| Power consumption | ＜3W | Intensity | > 32cd |
| Surge resistance | IEC61000-4-5 3kA IEC61000-4-5 6kV | Ambient temperature | -40˚C ~ +55˚C |
| Light source | LED | Ambient humidity | 0% ~ 95% (no condensing) |
| Light color | Red | Wind level | 240Km/h |
| Vertical degree | ≥ 10° | IP rate | IP67 |
| Horizontal degree | 360° | Weight | 1.1Kg |
| Work Mode | Constant light | Materials | Housing: Aluminum Alloy Lens: Optical Glass |
Executive Standard:
ICAO (Aerodromes Annex 14-2018)
CAAC (MH5001-2019), (MH/T6012-2015)
FAA (AC150-5345-43H)

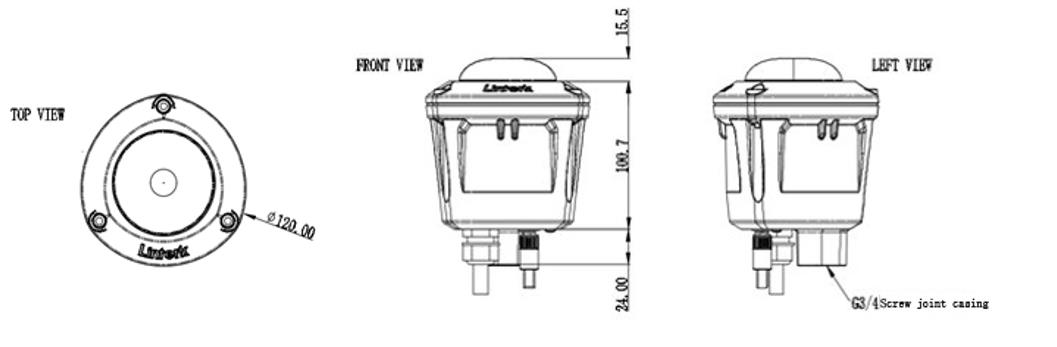

Installation size:
Application Fields
