Low Intensity Type D Aviation Obstruction Light

Model numberLT-01-LD02/DC(L)
Work voltageDC12V-24V
Power consumption<4.5W
Surge resistance

IEC61000-4-5 3kA, IEC61000-4-5 6kV

Light sourceLED
Light colorYellow
Vertical degree≥ 17 °
Horizontal degree360°
Flash Mode60-90 flash/min


Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-LD02/DC(L)LED life≥100,000 hours
Work voltageDC12V-24VPhotosensitivity0~500cd/ ㎡ (adjustable)
Power consumption<4.5WIntensity≥ 200cd
Surge resistance

IEC61000-4-5 3kA

IEC61000-4-5 6kV

Ambient temperature-40˚C ~ +55˚C
Light sourceLEDAmbient humidity0% ~ 95%
Light colorYellowWind level240Km/h
Vertical degree≥ 12°IP rateIP68
Horizontal degree360°Weight0.6Kg
Flash Mode60~90 flash/min
Materials

Housing: Aluminum Alloy

Lens: Optical Glass



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43H)

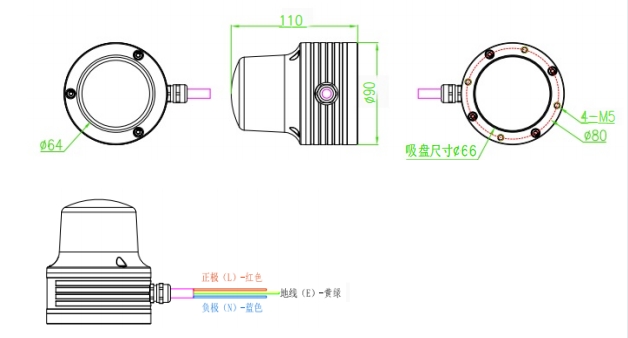

Installation size:


Low Intensity Type C Aviation Obstruction Light

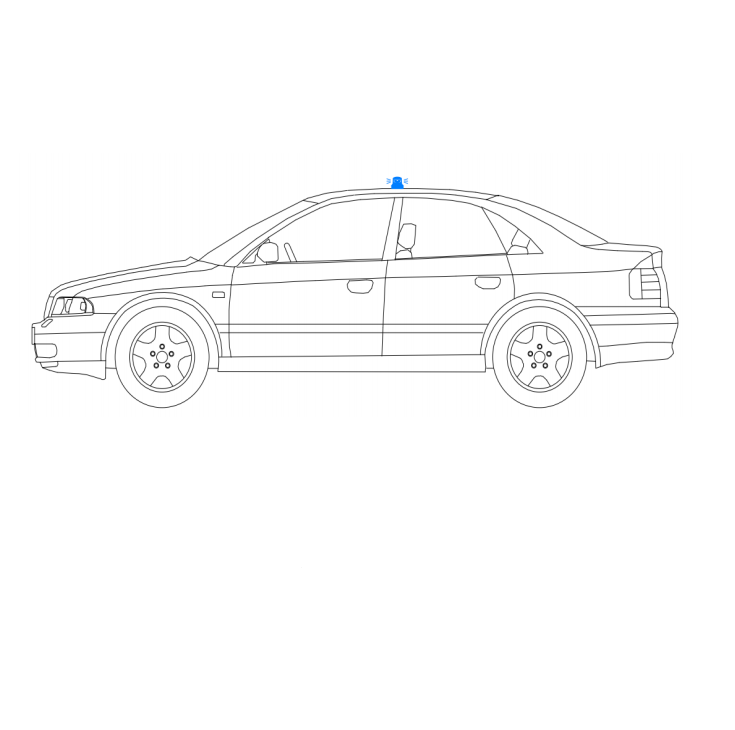

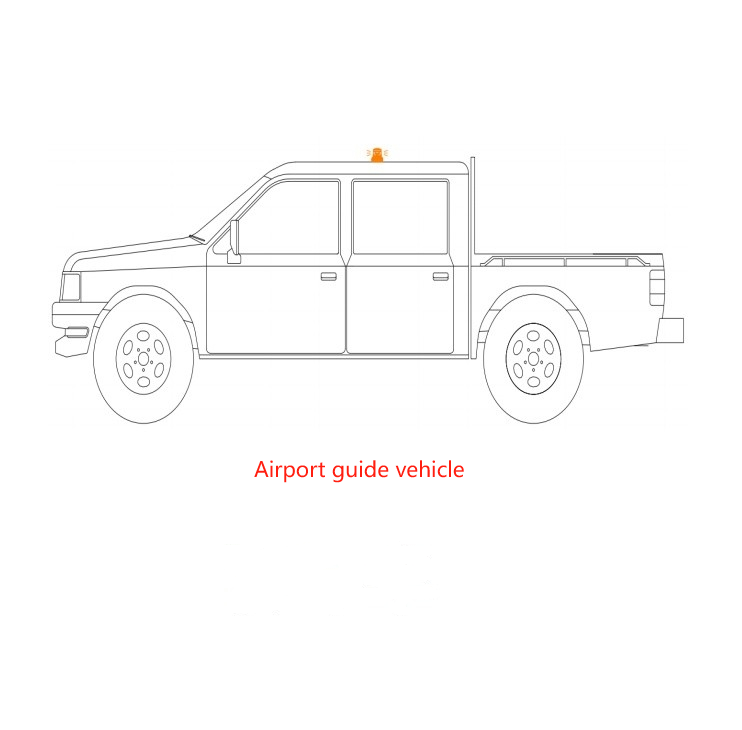

Application Fields


Low Intensity Type C Aviation Obstruction LightLow Intensity Type C Aviation Obstruction Light

Medium Intensity Type A Obstacle Light

Low intensity type b obstruction light direct
