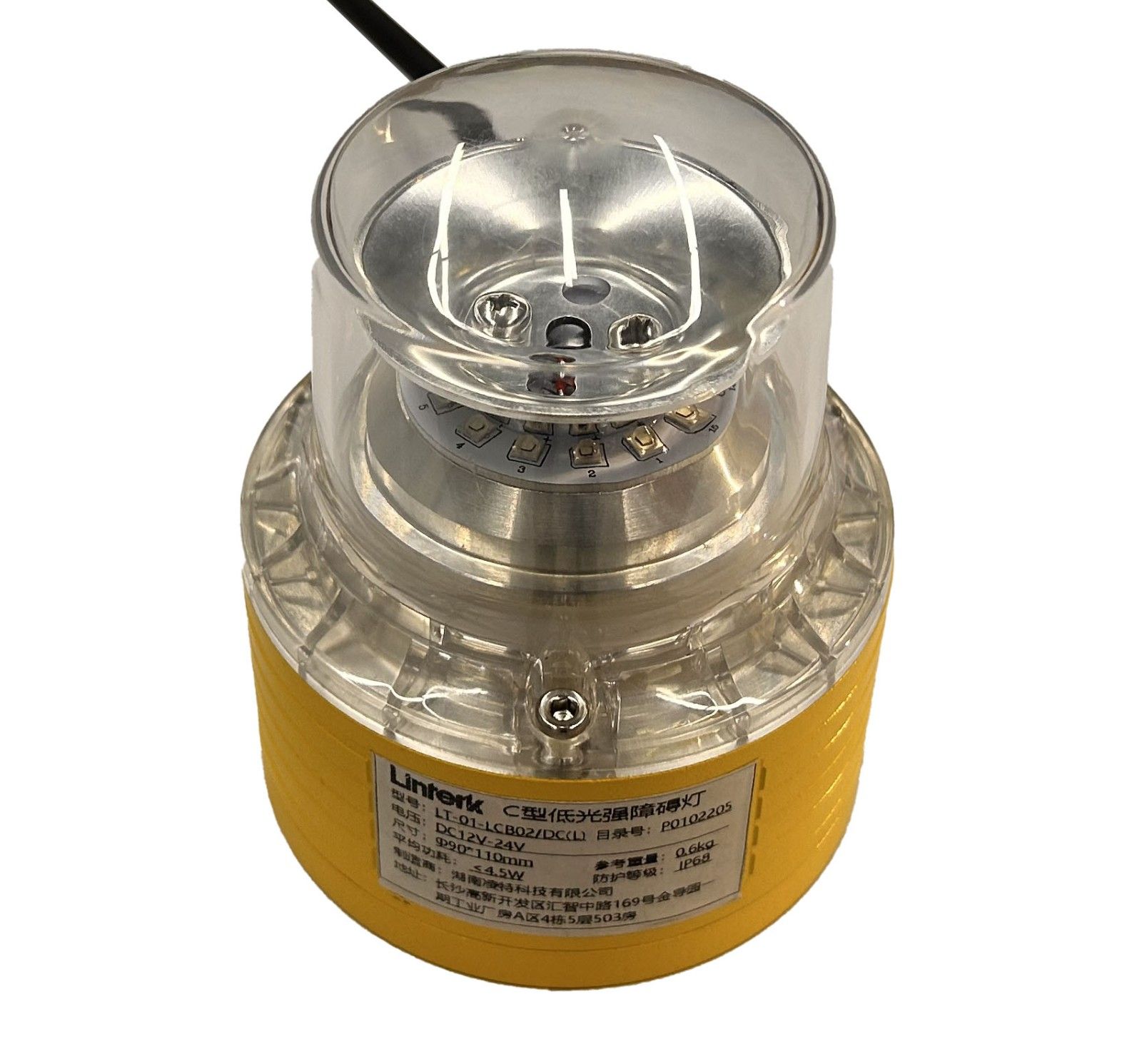

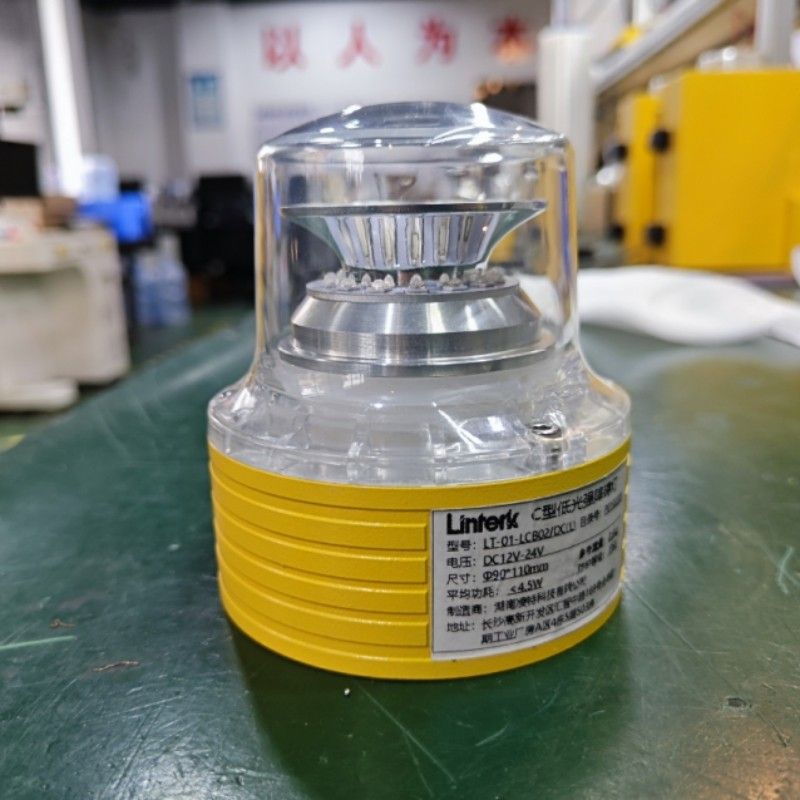

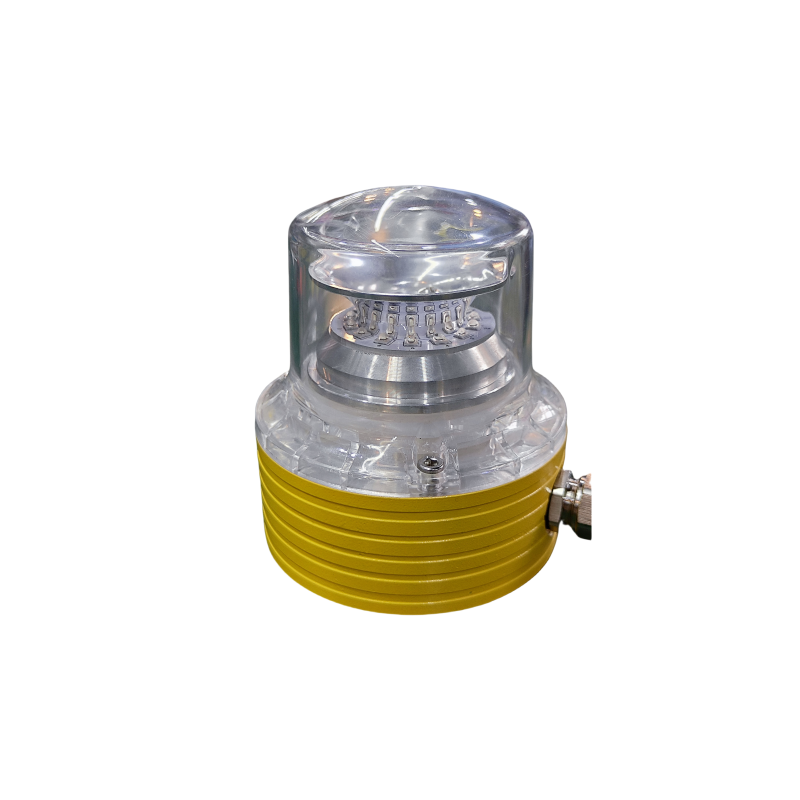

Low Intensity Type C Obstruction Light (Yellow)
| Model number | LT-01-LCY02/DC(L) |
| Work voltage | DC12V-24V |
| Power consumption | ＜1.5W |
| Surge resistance | IEC61000-4-5 3kA, IEC61000-4-5 6kV |
| Light source | LED |
| Light color | Yellow |
| Vertical degree | 2~10 ° |
| Horizontal degree | 360° |
| Flash Mode | 60-90 flash/min |
Share:
PRODUCT DESCRIPTION
Specification:
| Model number | LT-01-LCY02/DC(L) | LED life | ≥100,000 hours |
| Work voltage | DC12V-24V | Photosensitivity | 0~500cd/ ㎡ (adjustable) |
| Power consumption | ＜1.5W | Intensity | ≥40cd and ≤400cd |
| Surge resistance | IEC61000-4-5 3kA IEC61000-4-5 6kV | Ambient temperature | -40˚C ~ +55˚C |
| Light source | LED | Ambient humidity | 0% ~ 95% (no condensing) |
| Light color | Yellow | Wind level | 240Km/h |
| Vertical degree | 2~10° | IP rate | IP68 |
| Horizontal degree | 360° | Weight | 0.6Kg |
| Flash Mode | 60~90 flash/min | Materials | Housing: Aluminum Alloy Lens: high strength PC |
Executive Standard:
ICAO (Aerodromes Annex 14-2018)
CAAC (MH5001-2019), (MH/T6012-2015)
FAA (AC150-5345-43H)
Installation size:
Application Fields
