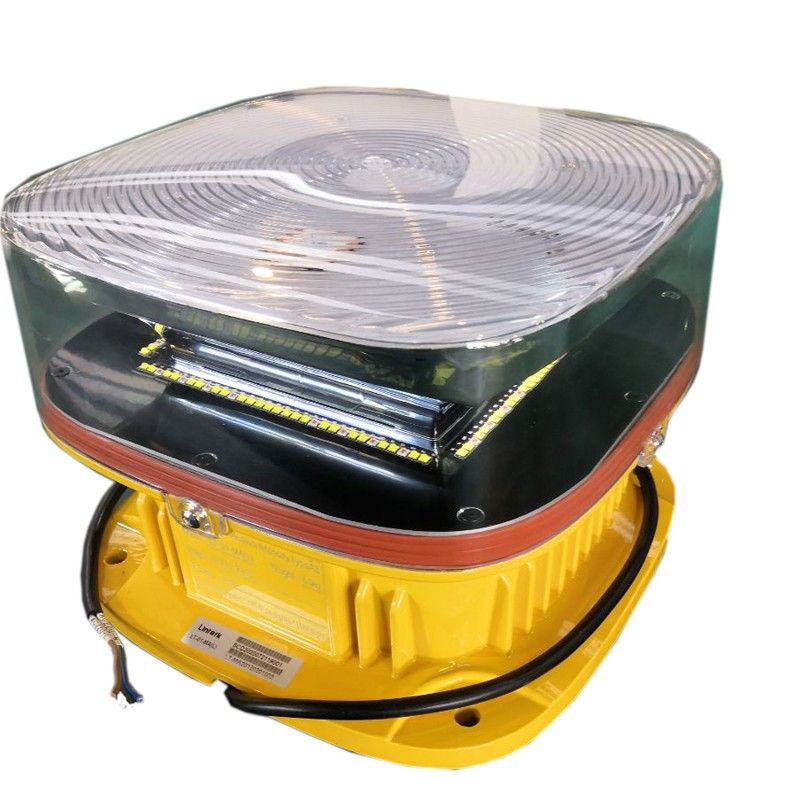

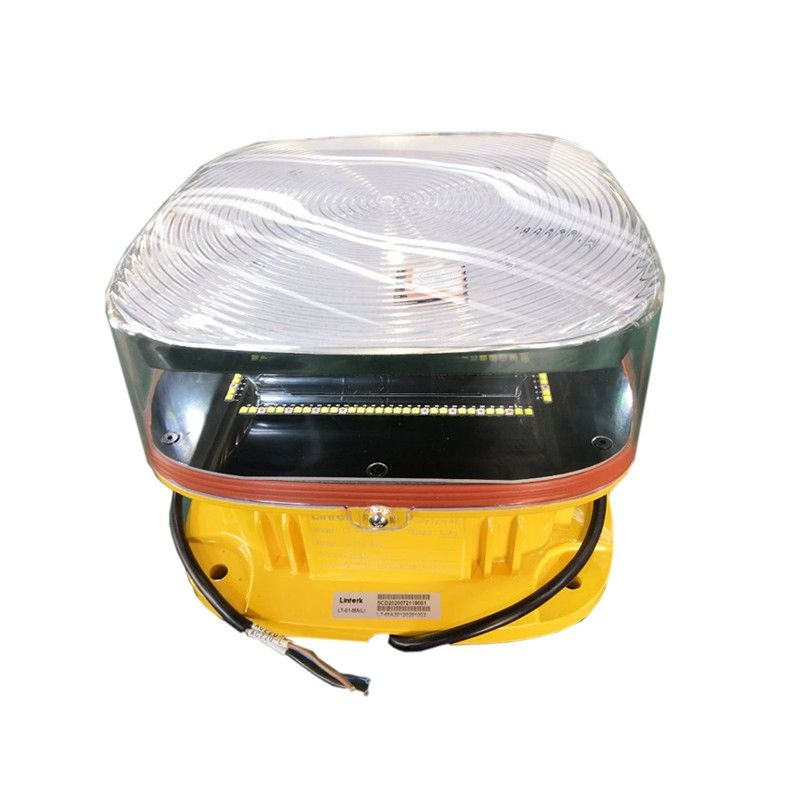

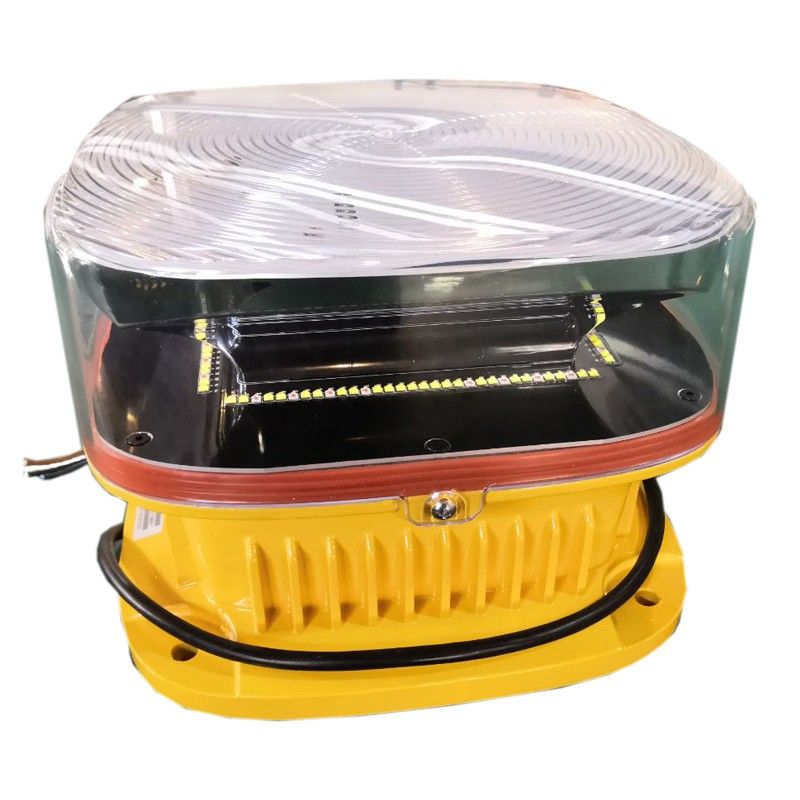

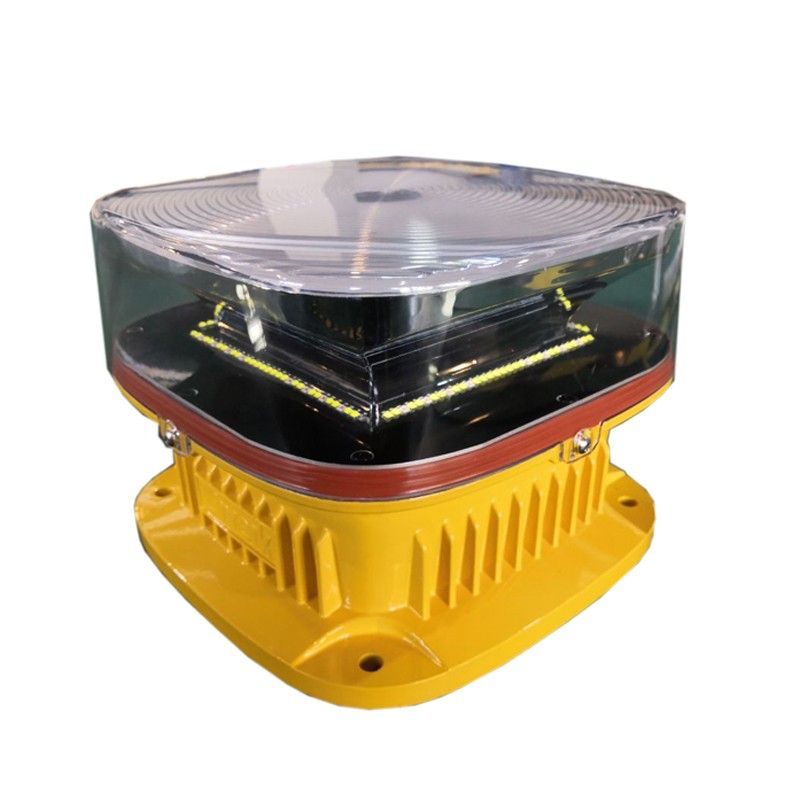

Medium intensity Type AB Aviation Obstruction Light

Model numberLT-01-MAB (L)
Work voltageAC85~265V
Power consumption<8W
Surge resistance

IEC61000-4-5 3kA, IEC61000-4-5 6kV

LightsourceLED
Light colorWhite(Daytime)/Red(Nighttime)
Vertical degree
Horizontal degree360°
Flashing rate20~60 FPM (adjustable)
LED life≥100,000 hours
Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-MAB (L)Photosensitivity0~500cd/ ㎡(adjustable)
Work voltageAC85-265VIntensity
Day: 20000±25%cd
Power consumption<8WDusk Dawn: 20000±25%cd
Lightsource

LED

Night: 2000±25%cd
LED life≥100,000 hoursAmbient temperature-40˚C ~ +55˚C
Light colorWhite(Daytime)/Red(Nighttime)Ambient humidity0% ~ 95% (no condensing)
Vertical degreeWind level240Km/h
Horizontal degree360°IP rateIP65
Flashing rate20~60 FPM (adjustable)Weight5.7Kg
Surge resistance

IEC61000-4-5 3kA

IEC61000-4-5 6kV

Materials

Shell: Aluminum Alloy

Cap: High Strength PC

Reflector: ABS Vacuum Coating



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43H)


Installation size:

Medium Intensity Type A Obstacle Light

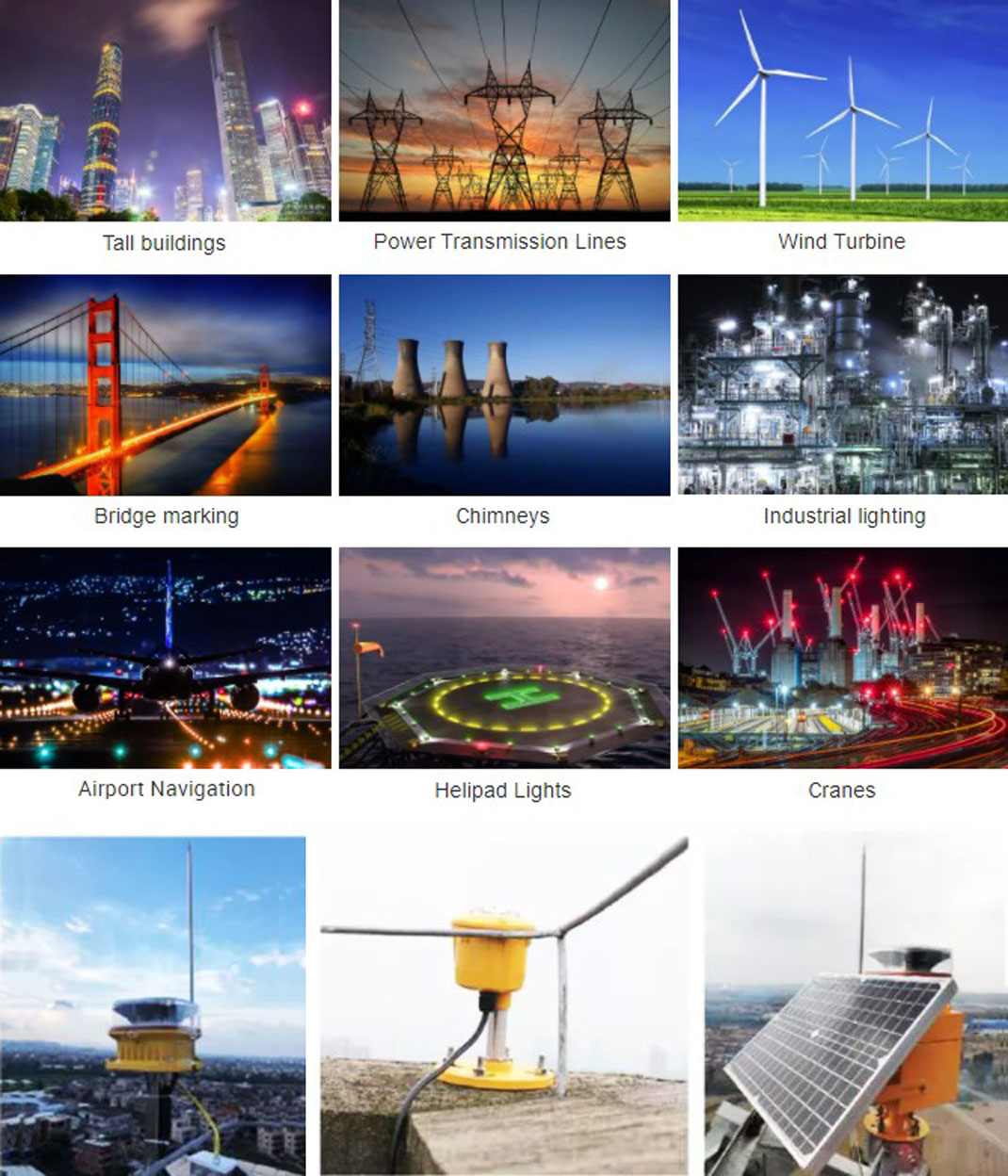

Application Fields


Medium Intensity Type A Obstacle Light

Medium intensity Type AB Aviation Obstruction Light
