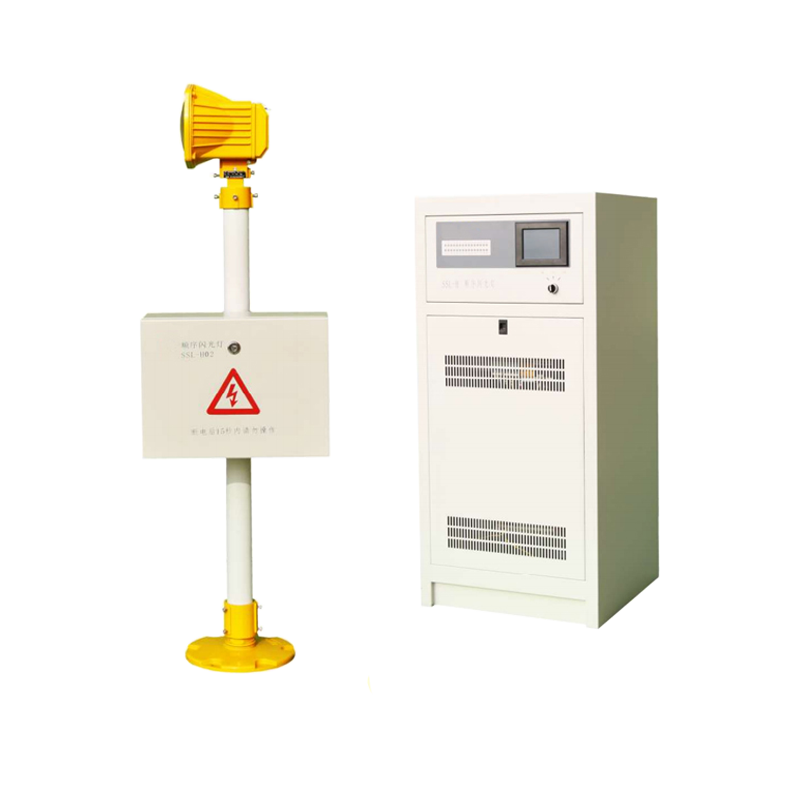

Sequenced Flash Lights System
| Power | 2.5KW |
Intensity | >10000cd |
IP rate | IP67 |
Work temperature | -55- + 55 ℃ |
PRODUCT DESCRIPTION
Features
Light intensity and light color meet the standard requirements
Precision optical control, high light efficiency, high brightness and good optical performance
The panel of the main control cabinet uses LCD , which is simple and convenient to operate and can display the number of lamp flashes and Leakage flashes
If the main control cabinet fails, the system can still flash in the normal order before the main control fails.
The overall shape of the lamp is beautiful, the heat dissipation performance is good, and the design is reasonable
Executive Standard
ISO9001
ICAO(Aerodromes-Annex-14-2013.7)
Comply with ICAO-"Airport Design Manual"
FAA(AC150 / 5345-51B)
GB7256-2015
GB / T 3977-2008 "Color Representation"
CA-137--the AC 2015-09
AC-137-CA-2015-10-R1
Structure
1 | Buckle | 10 | Front cover |
2 | Rear cover | 11 | Scale plate |
3 | Seal | 12 | Bracket |
4 | Socket | 13 | Vertical pipe |
5 | Lamp | 14 | Foldable parts |
6 | Lamp body | 15 | Flanges |
7 | Reflective bowl | 16 | Connecting cord |
8 | Glass cover | 17 | Nameplate |
9 | Front cover gasket | 18 | Snap spring |

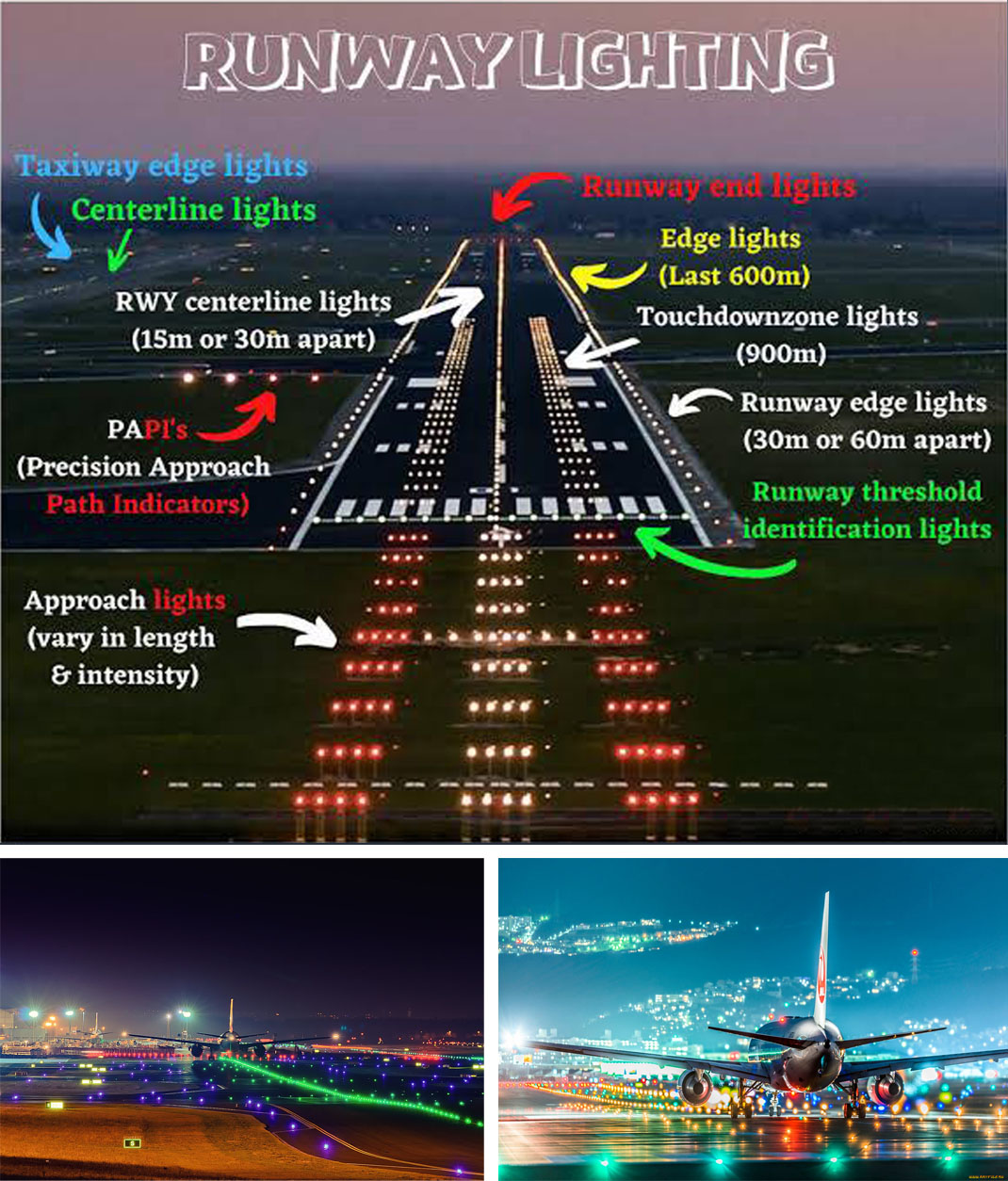

Application
This product is application to approach flash systems and entrance identification lights for civil and military airports.
