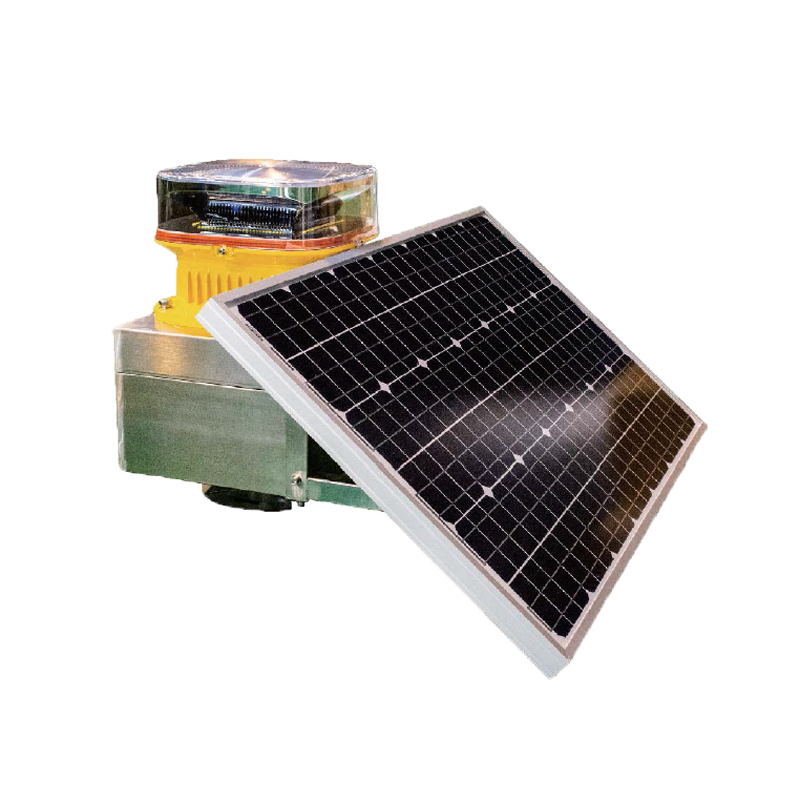

Solar Medium Intensity Aviation Obstruction Light


Model number

LT-01-MA(L)

IP rateIP65
Power consumption<8W
Surge resistance

IEC61000-4-5 3kA, IEC61000-4-5 6kV

Light sourceLED
Emmitting colorWhite
Vertical degree
Horizontal degree360°
Flashing rate20~60 FPM (adjustable)
LED lifespan≥100,000 hours


Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-MA(L)Photosensitivity0~500cd/ ㎡(adjustable)
BatteryGel batteryPower consumption<8W
Surge resistance

IEC61000-4-5  3kA

IEC61000-4-5  6kV

Intensity

20000±25%cd

2000±25%cd

Light sourceLEDAmbient temperature-40˚C ~ +55˚C
Emitting colorWhiteAmbient humidity0% ~ 95% (no condensing)
Vertical degreeWind level240Km/h
Horizontal degree360°IP rateIP65
Flashing rate20~60 FPM (adjustable)Ref. Weight28Kg
LED lifespan≥100,000 hoursMaterials

Body: Aluminum Alloy

Lens: High Strength PC

Reflector: ABS Vacuum Coating



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43J)

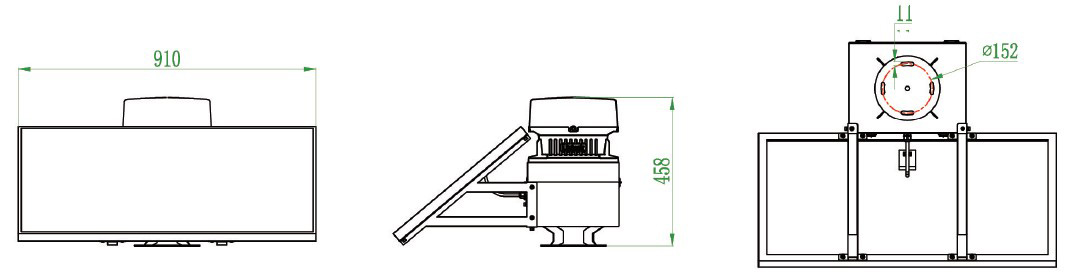

Installation size:


Solar Medium Intensity Aviation Obstruction Light

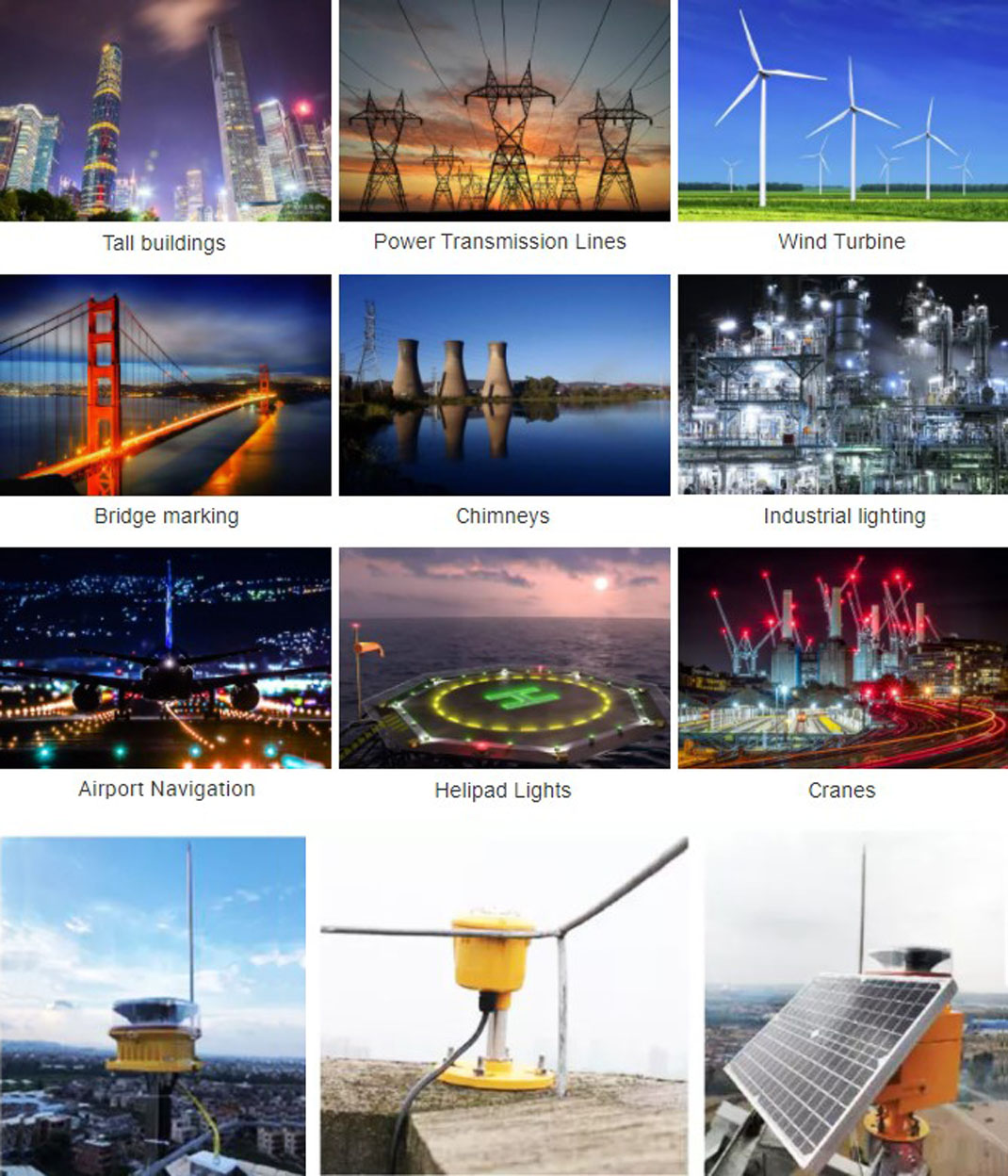

Application Fields


Medium Intensity Type A Obstacle Light

Solar Medium Intensity Aviation Obstruction Light
