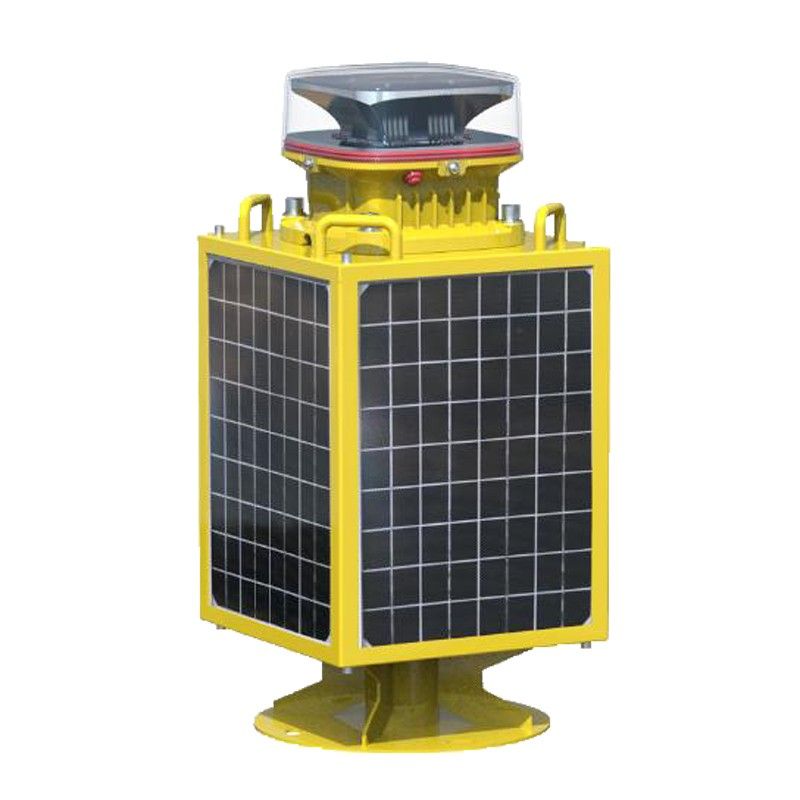

Solar Medium Intensity Obstruction Light Type B
| Model number | LT-01-MB/DC(L) |
| IP rate | IP65 |
| Power consumption | ＜2W |
| Surge resistance | IEC61000-4-5 3kA, IEC61000-4-5 6kV |
| Light source | LED |
| Emmitting color | Red |
| Vertical degree | ≥3° |
| Horizontal degree | 360° |
| Flashing rate | 20~60 FPM (adjustable) |
| LED lifespan | ≥100,000 hours |
Share:
PRODUCT DESCRIPTION
Specification:
| Model number | LT-01-MB/DC(L) | Photosensitivity | 0~500cd/ ㎡（adjustable） |
| Battery | Gel battery | Power consumption | ＜2W |
| Surge resistance | IEC61000-4-5 3kA IEC61000-4-5 6kV | Intensity | 2000±25%cd |
| Light source | LED | Ambient temperature | -40˚C ~ +55˚C |
| Emitting color | Red | Ambient humidity | 0% ~ 95% (no condensing) |
| Vertical degree | ≥3° | Wind level | 240Km/h |
| Horizontal degree | 360° | IP rate | IP65 |
| Flashing rate | 20~60 FPM (adjustable) | Ref. Weight | 16Kg |
| LED lifespan | ≥100,000 hours | Materials | Body: Aluminum Alloy Lens: High Strength PC Reflector: ABS Vacuum Coating |
Executive Standard:
ICAO (Aerodromes Annex 14-2018)
CAAC (MH5001-2019), (MH/T6012-2015)
FAA (AC150-5345-43J)

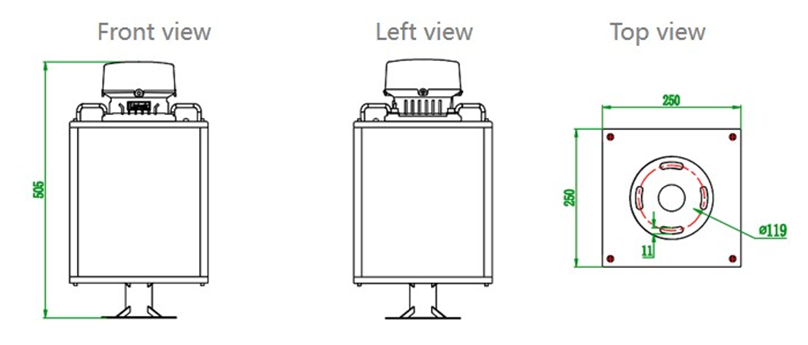

Installation size:

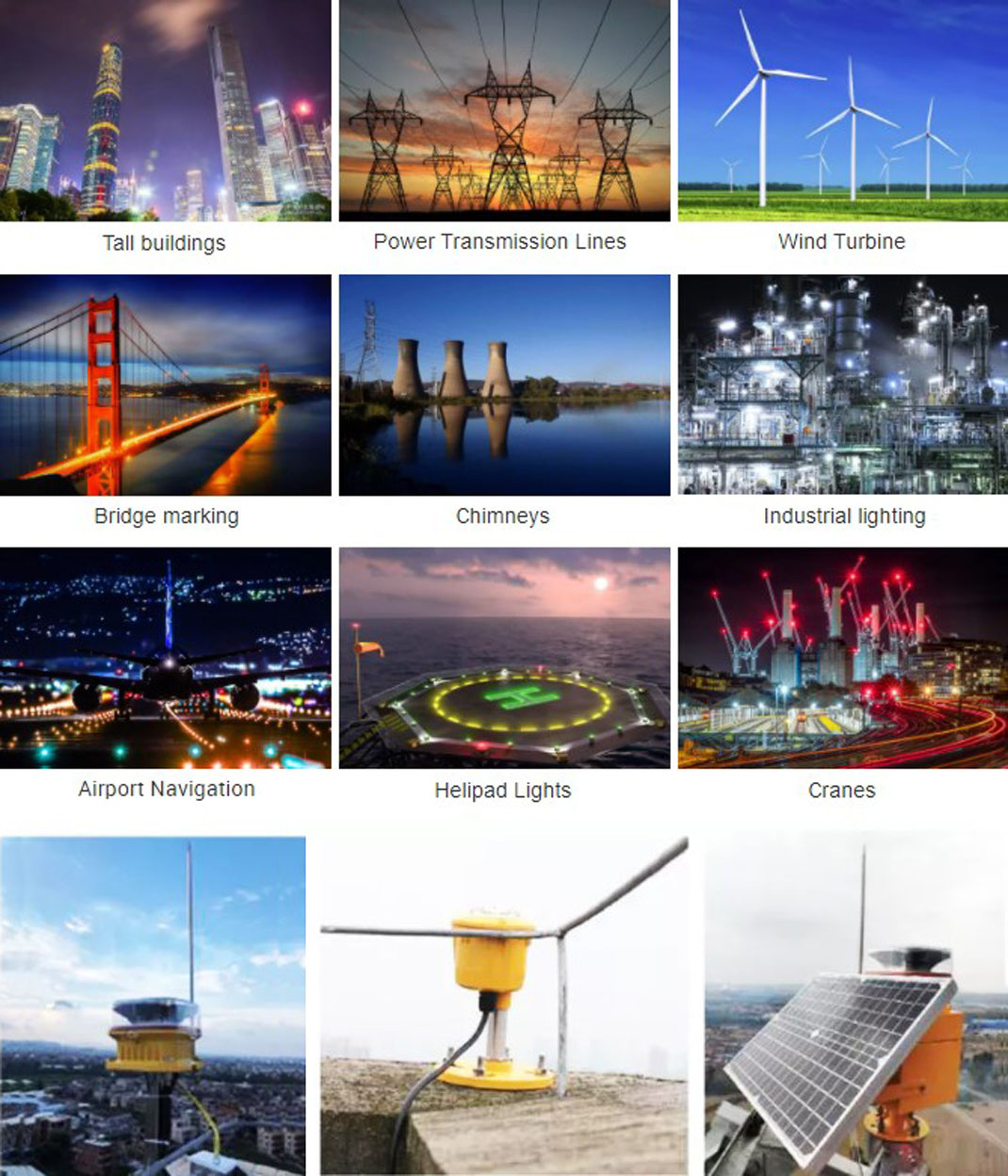

Application Fields
