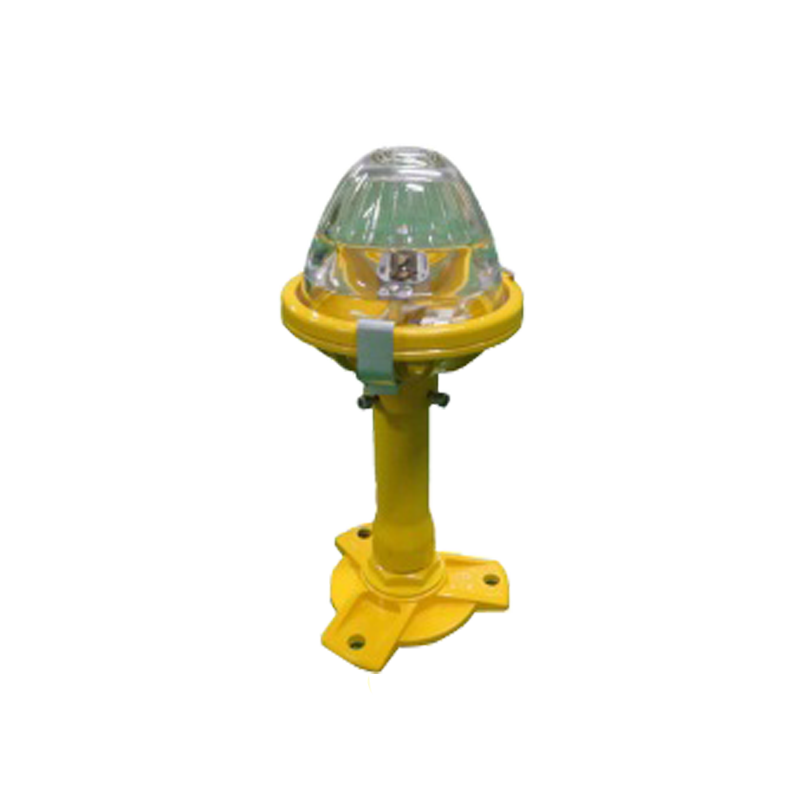

LED Elevated Taxiway Edge Light
| Power | 50W |
| Light intensity | >2CD |
| IP rate | IP65 |
| Ambient temperature | -55-+55℃ |
PRODUCT DESCRIPTION
Product Feature:
￭ Light intensity and light color meet the standard requirements.
￭ Sophisticated optical control, high light utilization rate, high brightness, outstanding optical performance.
￭ The overall shape of the lamp is beautiful, the heat dissipation performance is good, and the design is reasonable.
￭ The lamp adopts a split structure, and the lamp body is a fully enclosed structure, which reduces the entry of impurities and moisture into the lamp, improves the service life of the lamp optics, and reduces the number of maintenance operations.
Executive Standard:
￭ ISO9001
￭ ICAO(Aerodromes-Annex-14-2013.7)
￭ Comply with ICAO-"Airport Design Manual"
￭ FAA(AC150 / 5345-46E)
￭ GB7256-2015
￭ GB3977-83 "Color Representation"
￭ GB7001-86
￭ AC-137-CA-2015-03-R1
￭ AC-137-CA-2015-04-R1

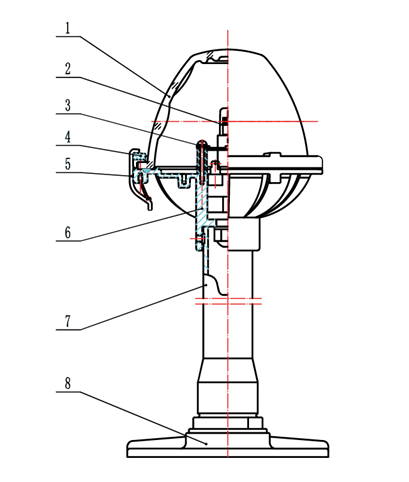

Structure
| 1 | Glass cover | 5 | hasp |
| 2 | Bulb | 6 | Lamp body |
| 3 | Lamp base | 7 | Foldable parts |
| 4 | Cover | 8 | Flange |

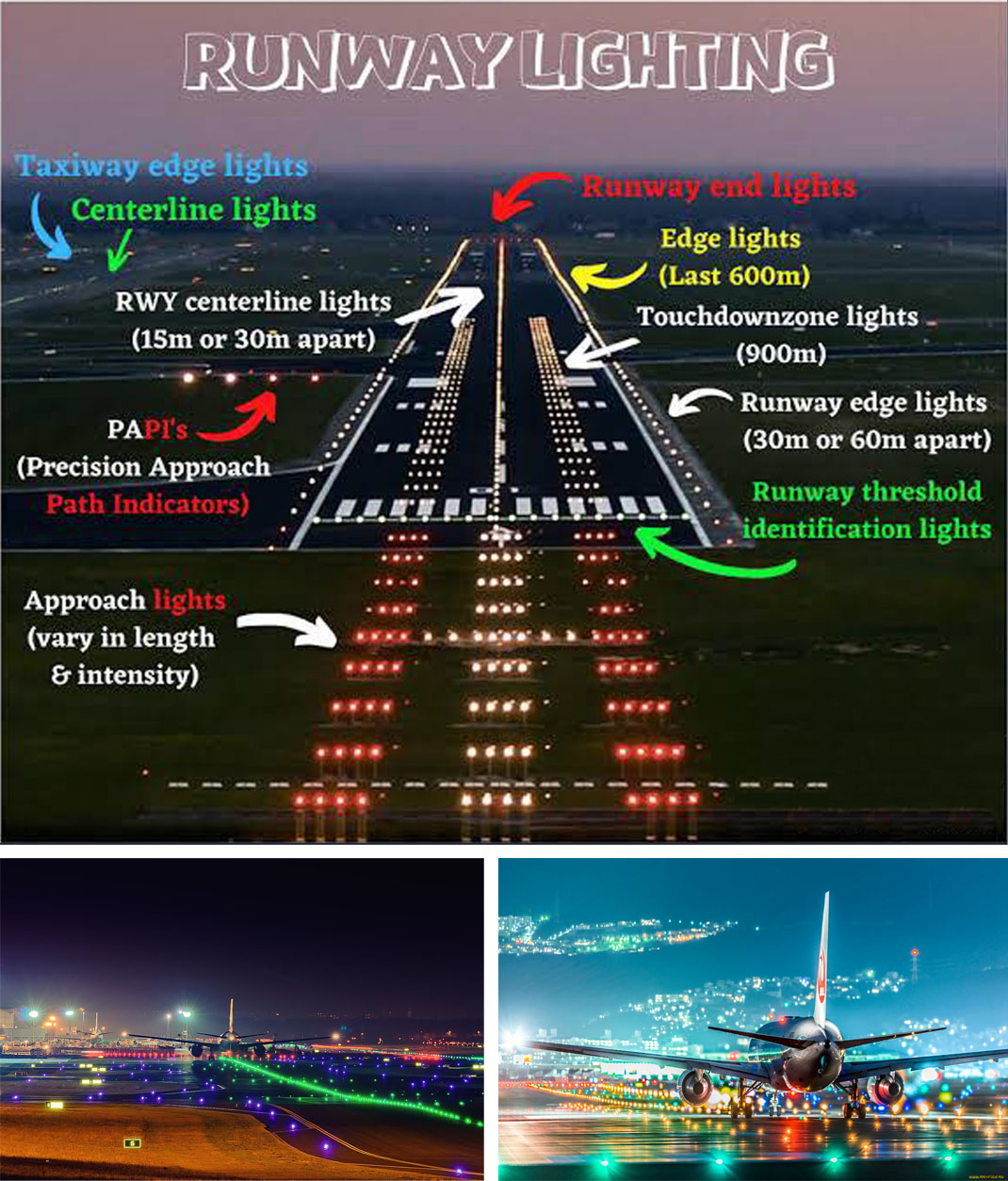

Application:
This product is application to taxiway edge lights, apron lights, turning lights and obstruction lights for civil and military airports.
